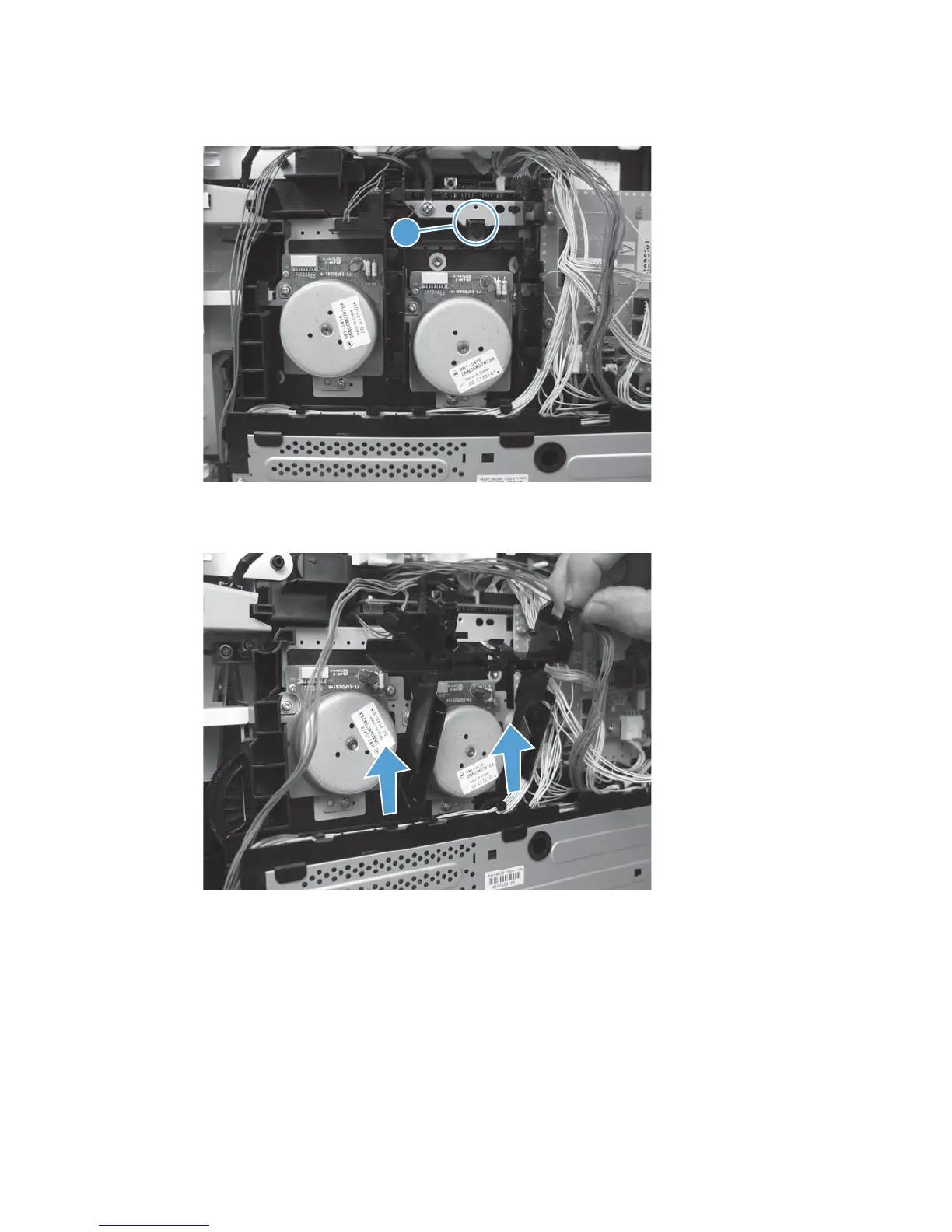

5. Release one tab (callout 1).
Figure 1-81 Remove motor M1 and motor M2 (4 of 6)
1
6. Rotate the top of the retainer away from the chassis, and then lift it up to remove it.
Figure 1-82 Remove motor M1 and motor M2 (5 of 6)
ENWW Removal and replacement procedures 61
