7. Remove three screws (callout 1) to remove motor M1, or remove three screws (callout 2) to remove
motor M2.

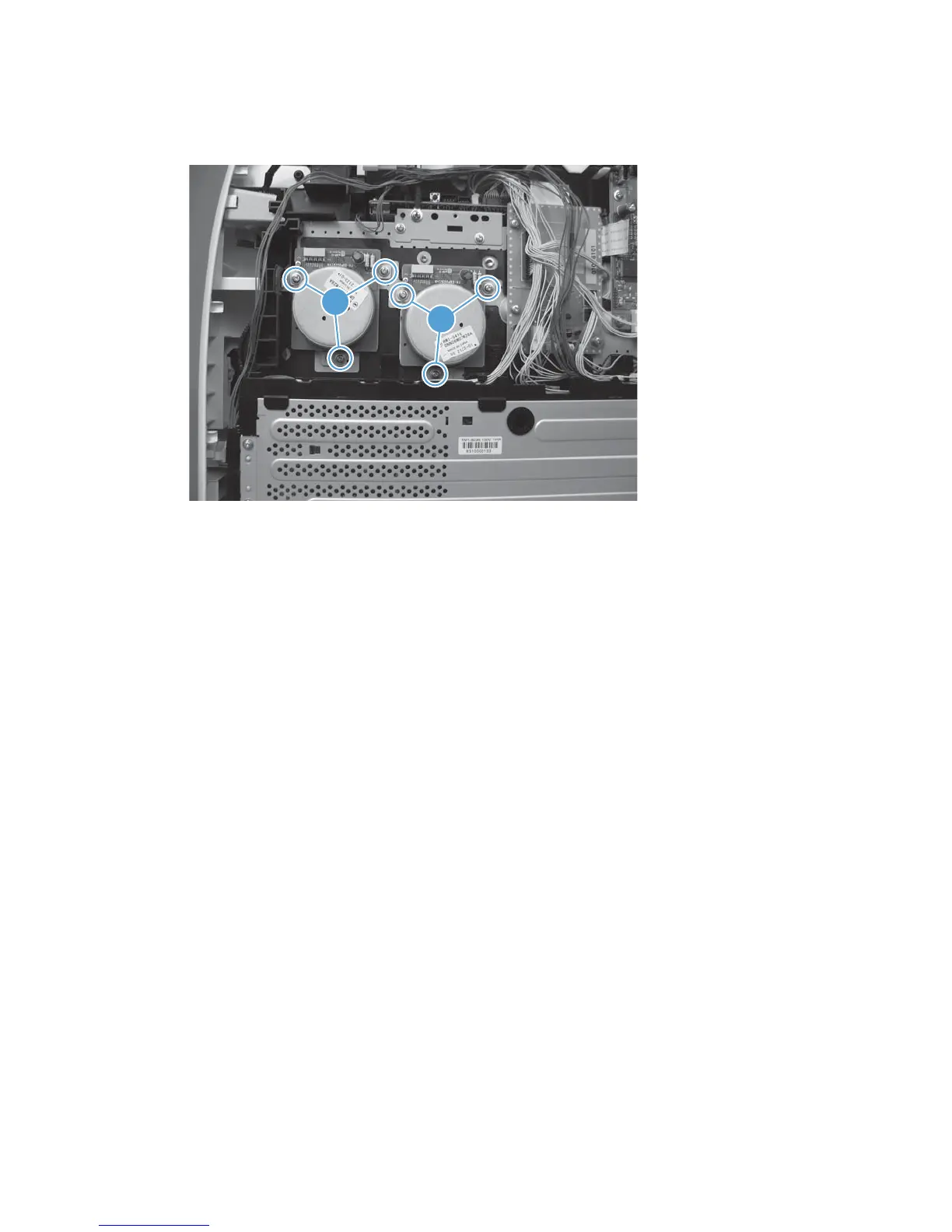

Figure 1-83 Remove motor M1 and motor M2 (6 of 6)
1
2
62 Chapter 1 Removal and replacement ENWW
