Reinstall the drum motor (M1) and developer motor (M2)
When the motor wire harness retainer is reinstalled, the two tabs at the bottom of the retainer must be
positioned behind the retainer on the low-voltage power supply. The tab at the side of motor wire harness
retainer must be positioned behind the PCA next to motor M2.

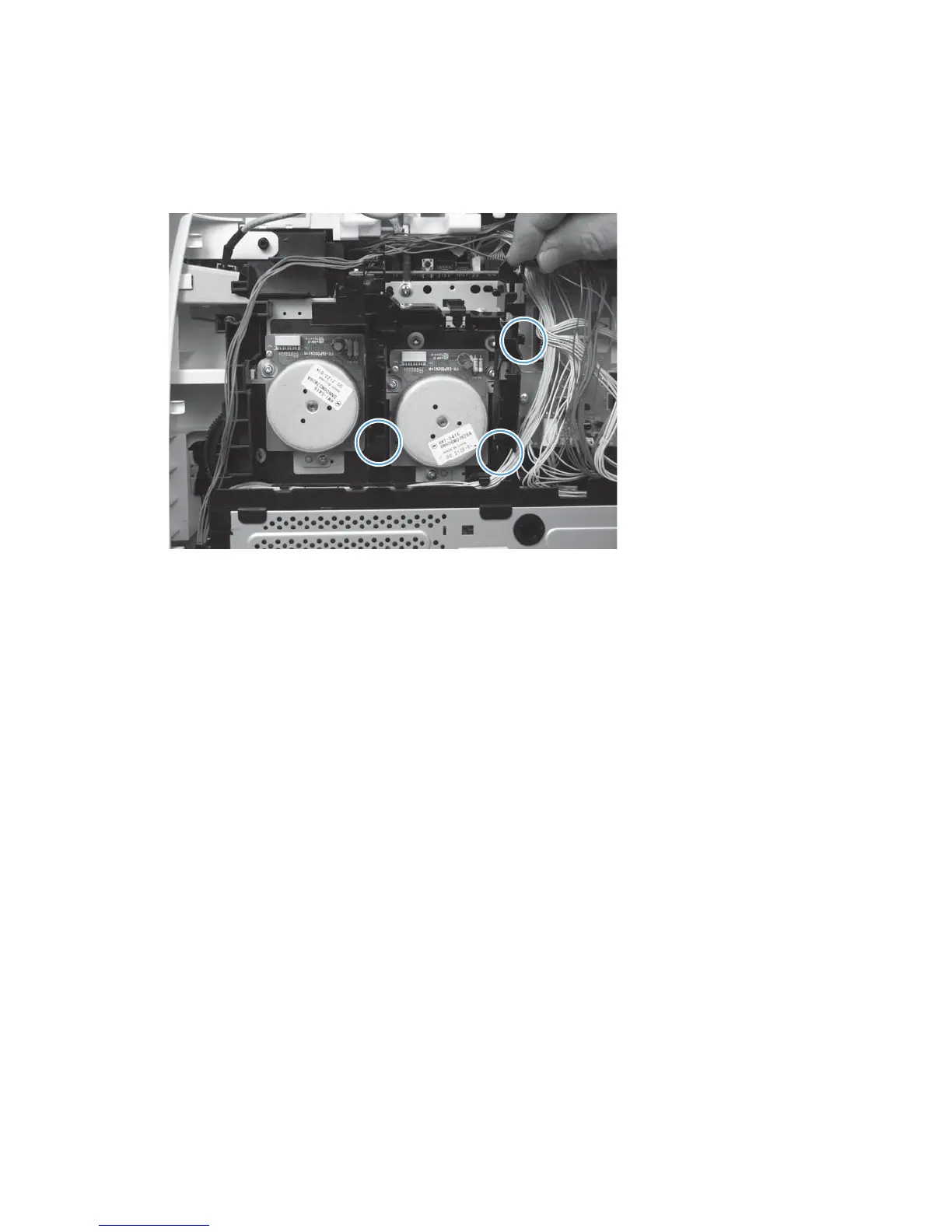

Figure 1-84 Reinstall the motor M1 and motor M2 wire-harness retainer
ENWW Removal and replacement procedures 63
