Intermediate PCA
1. Remove the right cover. See Right cover on page 25.
2. Disconnect all of the connectors and one FFC (callout 1) on the PCA.

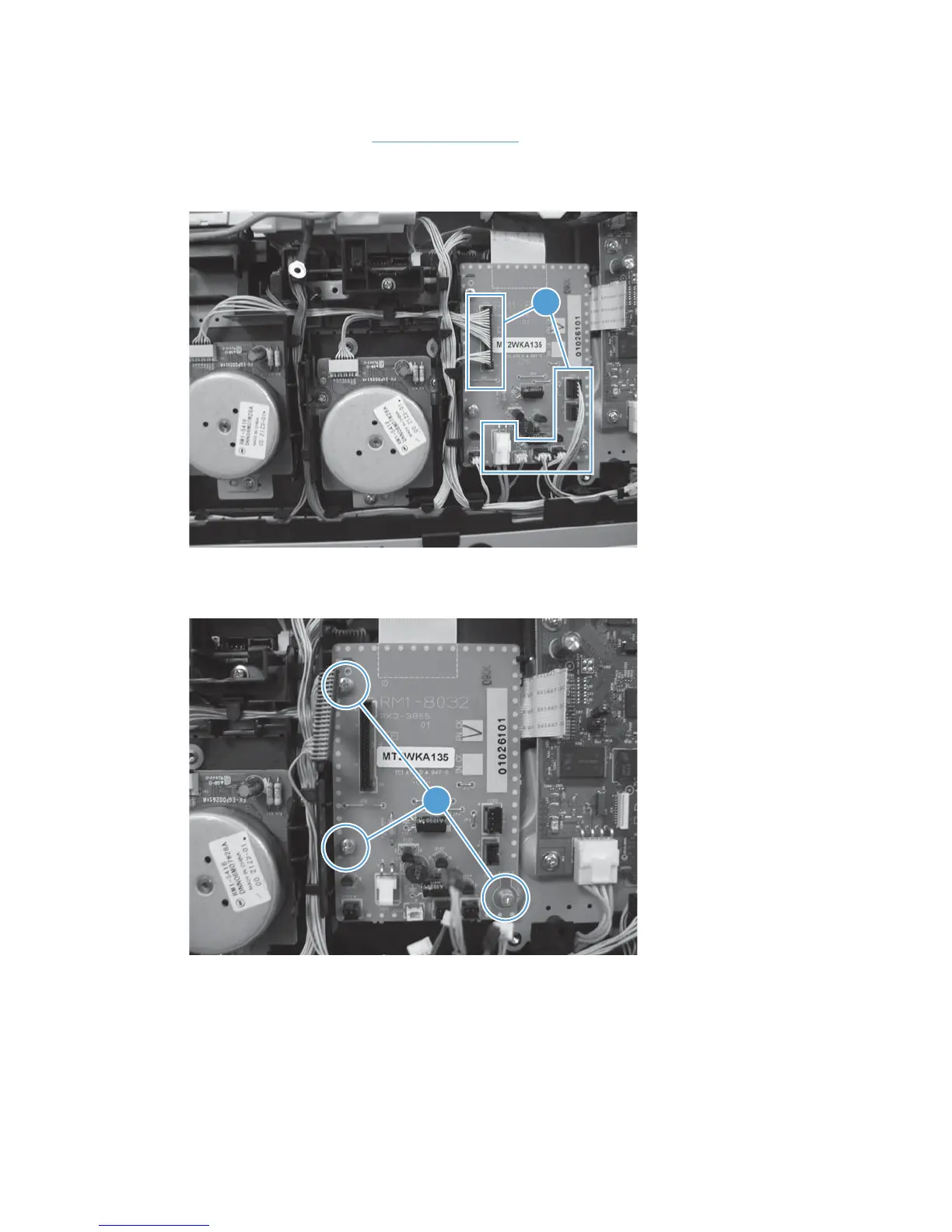

Figure 1-85 Remove the Intermediate PCA (1 of 2)
1
3. Remove three screws (callout 1) , and then remove the intermediate PCA.
Figure 1-86 Remove the Intermediate PCA (2 of 2)
1
