HP LaserJet Pro Color MFP M476dn - Page 86

Wireless PCA
1. Remove the right cover. See Right cover on page 25
2. Remove one screw (callout 1). Disconnect one connector (callout 2) at the formatter PCA.

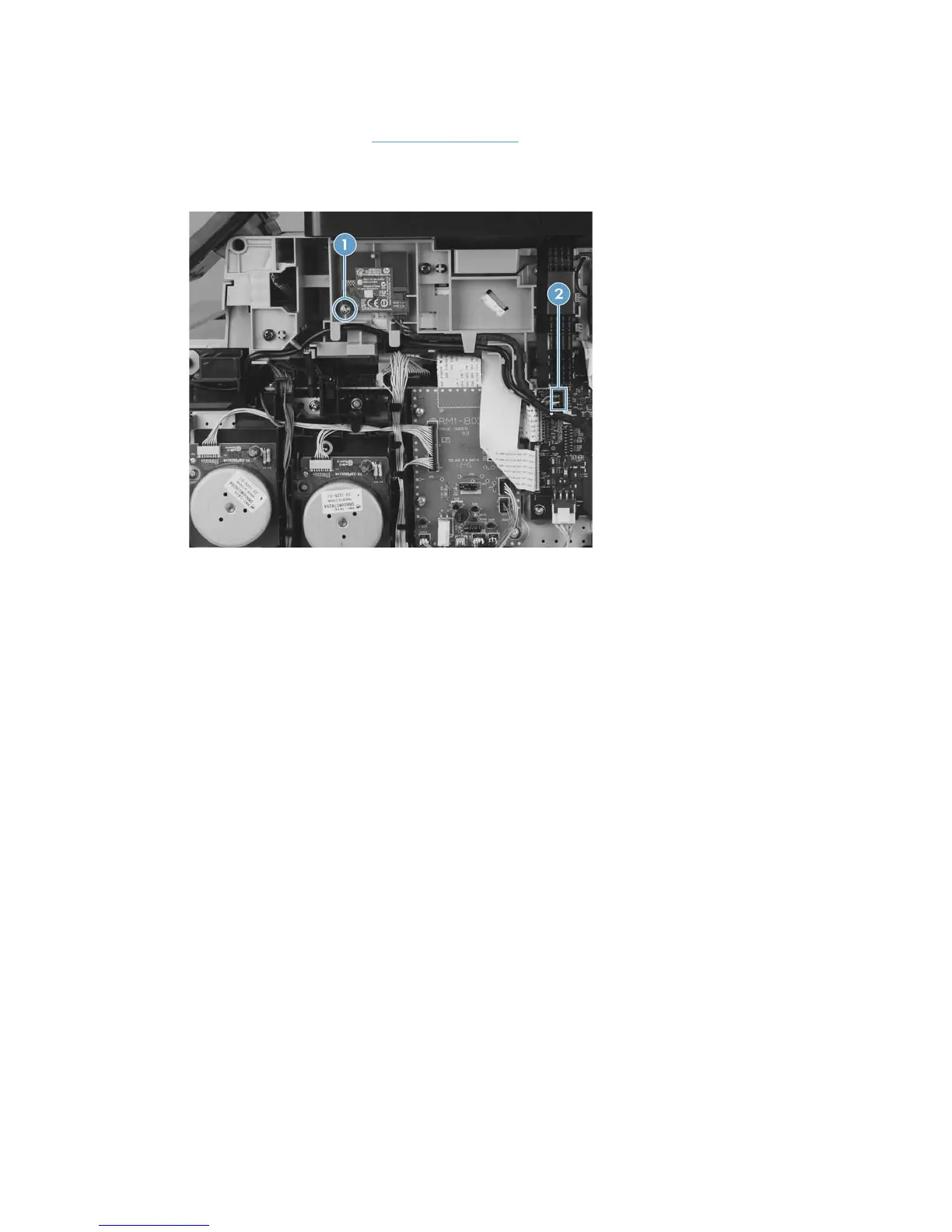

Figure 1-90 Remove the wireless PCA
3. Remove the wireless PCA.
68 Chapter 1 Removal and replacement ENWW
