4. Disconnect three connectors (callout 1), and then remove the wire harness (callout 2) from the
guide (callout 3).

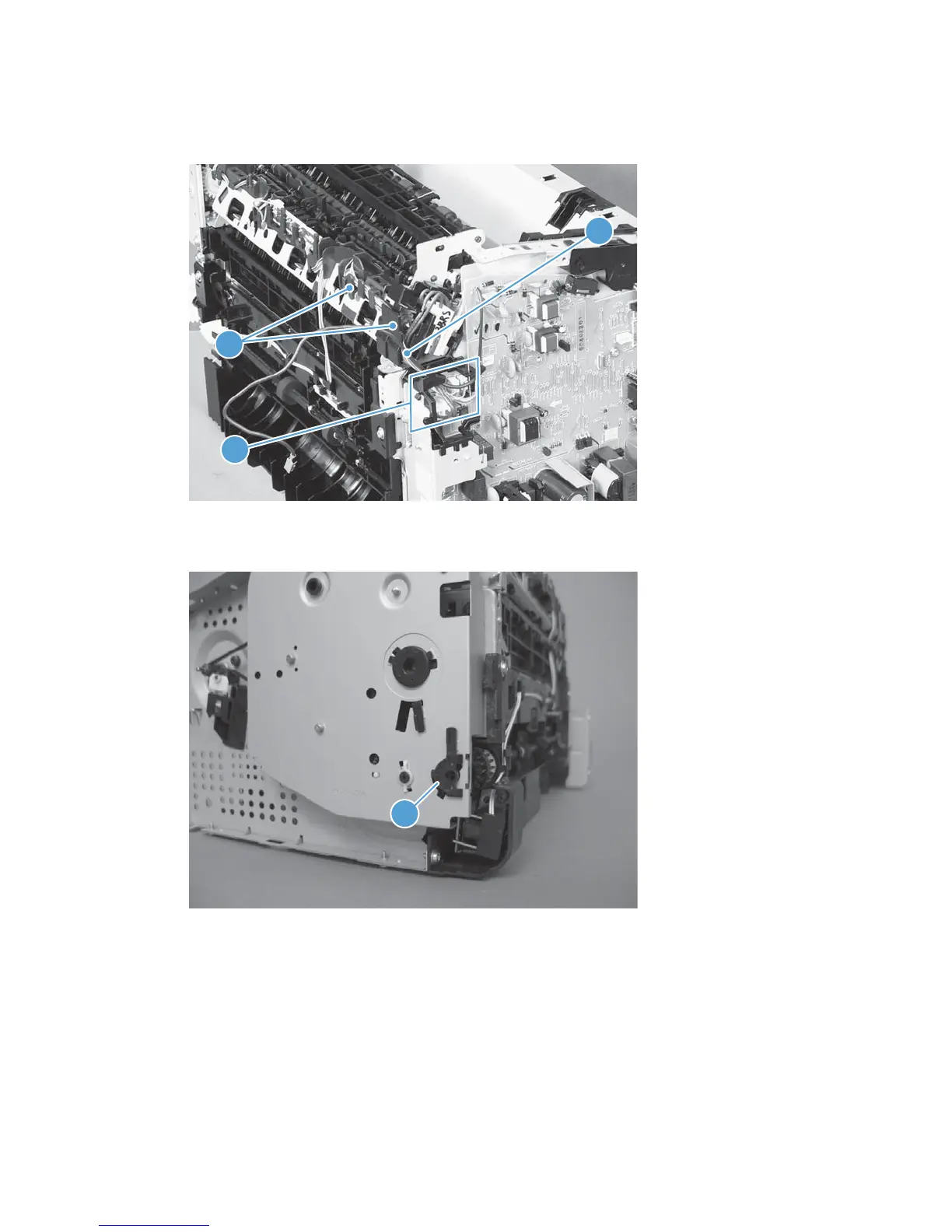

Figure 1-126 Remove the pickup assembly (4 of 6)
3
1
2
5. Remove one bushing (callout 1).
Figure 1-127 Remove the pickup assembly (5 of 6)
1
