4. Disconnect four connectors (callout 1), and then release the wire harnesses (callout 2) from the
guide (callout 3).

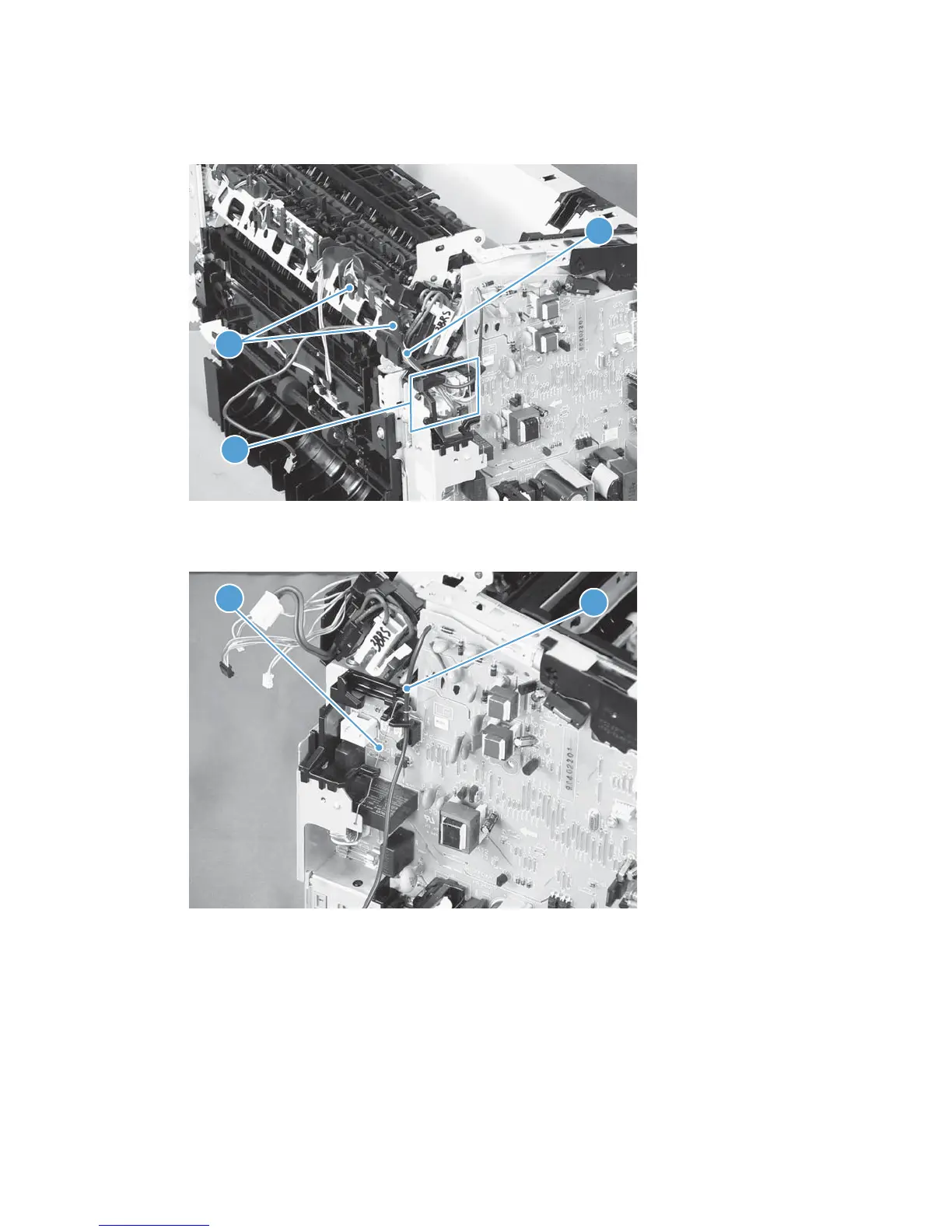

Figure 1-142 Remove the engine controller PCA (4 of 8)
3
1
2
5. Release the wire harness (callout 1) from the ground spring (callout 2).
Figure 1-143 Remove the engine controller PCA (5 of 8)
1
2
96 Chapter 1 Removal and replacement ENWW
