CIS scanner drive gears
NOTE: HP LaserJet Professional M1210 MFP series only.
Before proceeding, remove the following components:
●
Paper-delivery tray. See
Paper-delivery tray (output bin extension) on page 21.
●
Scanner assembly. See
Scanner assembly on page 30.
●
ADF top cover. See
ADF top cover on page 43.
●
ADF core. See
ADF core on page 45.
●
ADF tray. See
ADF tray on page 48.
●
ADF base. See
ADF base or scanner assembly lid on page 51.
●
Scanner assembly bezel. See
Scanner assembly bezel on page 53.
Remove the CIS scanner drive gears
1. Move the CIS scanner out of the way to expose the drive gears.
2. Remove one screw (callout 1), and then remove three gears (callout 2).

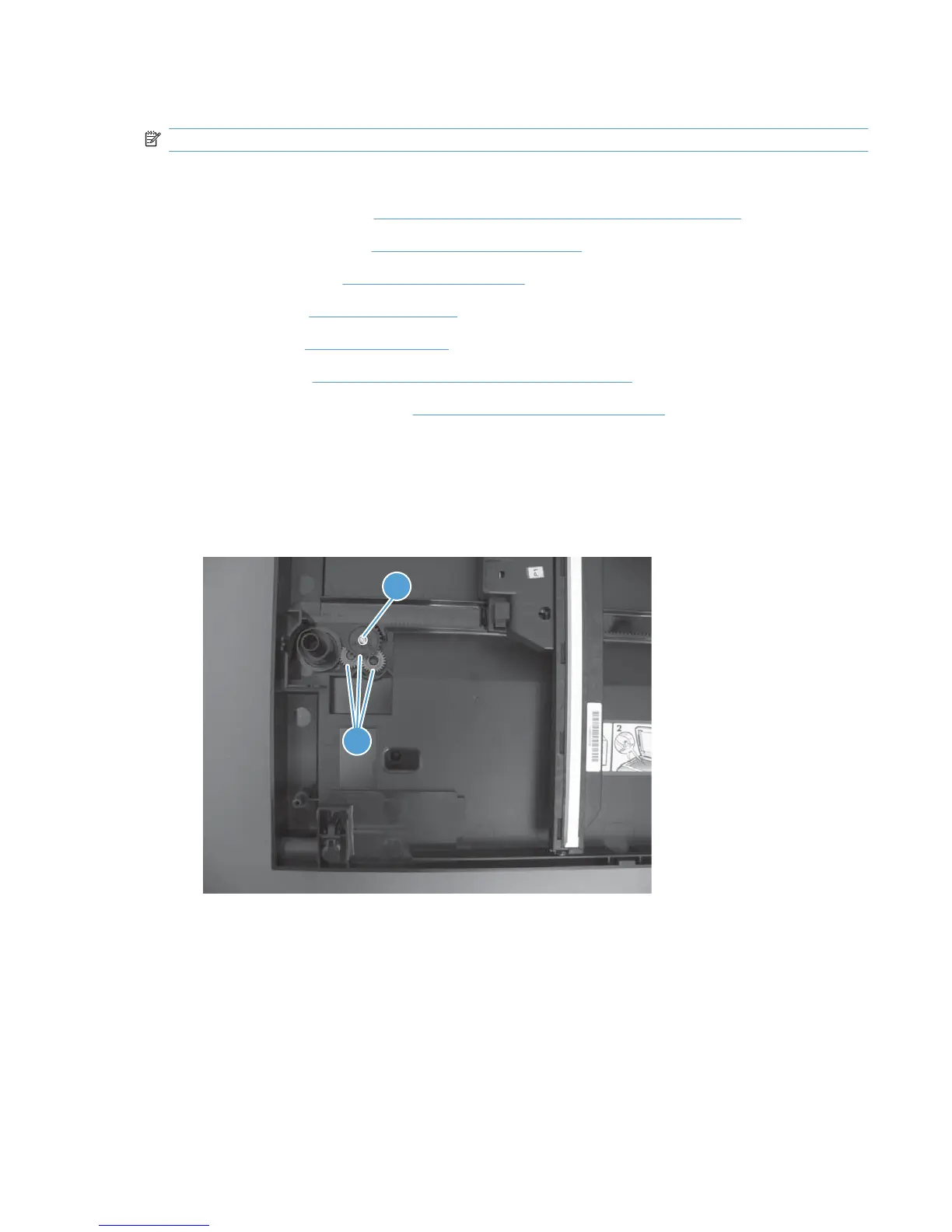

Figure 1-86 Remove the CIS scanner motor and gears
2
1
ENWW Scanner components 61
