External panels, covers, and doors: LaserJet Pro M201 and M202 series
Parts identification and location: HP LaserJet Pro M201 and M 202

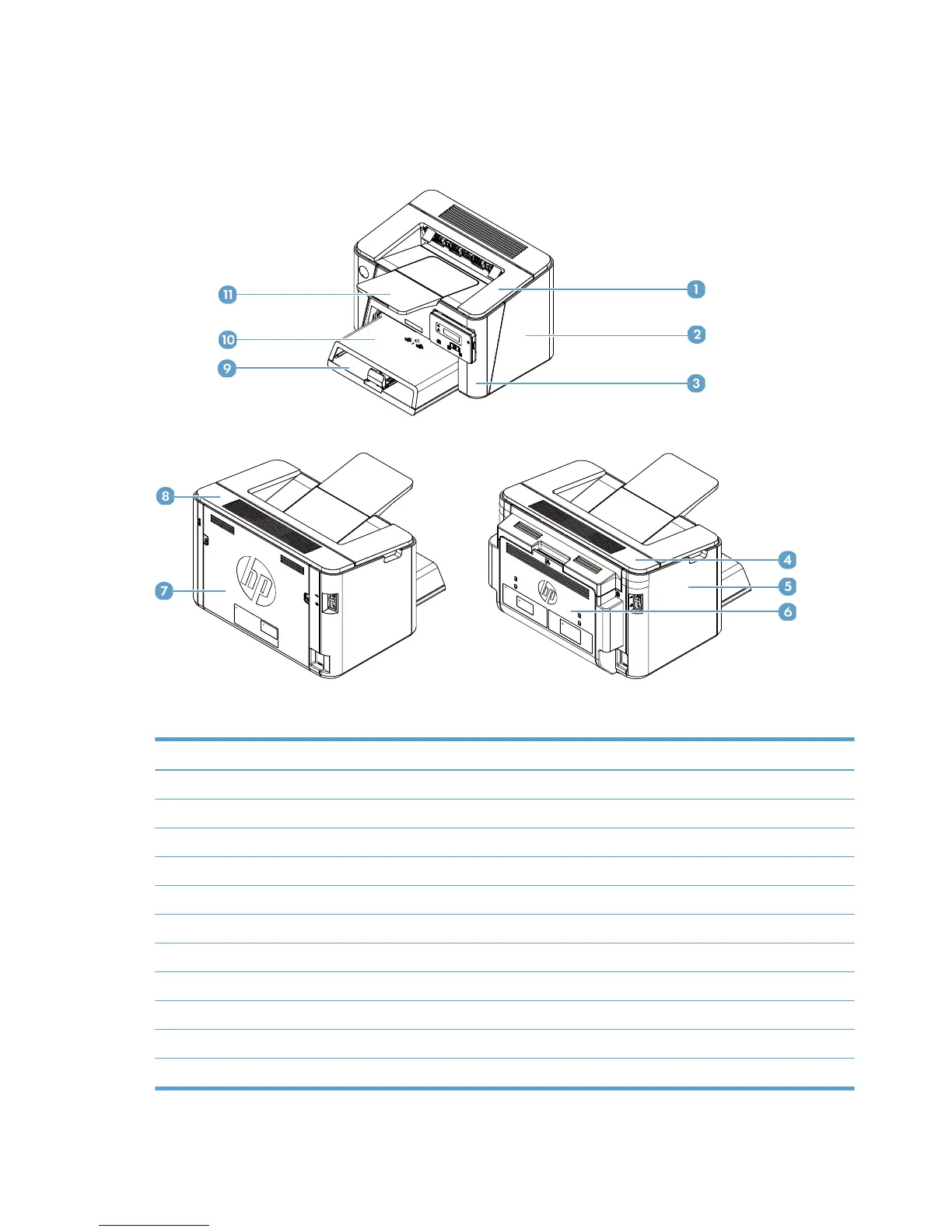

Figure 1-7 Parts location: HP LaserJet Pro M201 and M202
Table 1-2 Parts identification: HP LaserJet Pro M201 and M 202
Item Description
1 Cartridge door
2 Right cover
3 Front cover assembly
4 Top cover cap (duplex product only)
5 Left cover
6 Duplex door assembly (duplex product only)
7 Rear cover (simplex product only)
8 Top cover (simplex product only)
9 Input tray assembly
10 Dust cover
11 Output tray assembly
