24" LCD Color Monitor HP LP2475w
12
PIN MNEMONIC SIGNAL
1 ML Lane 0 (p) Lane 0 +
2 GND Ground
3 ML Lane 0 (n) Lane 0 -
4 ML Lane 1 (p) Lane 1 +
5 GND Ground
6 ML Lane 1 (n) Lane 1 -
7 ML Lane 2 (p) Lane 2 +
8 GND Ground
9 ML Lane 2 (n) Lane 2 -
10 ML Lane 3 (p) Lane 3 +
11 GND Ground
12 ML Lane 3 (n) Lane 3 -
13 GND Ground
14 GND Ground
15 AUX CH (p) Aux Channel +
16 GND Ground
17 AUX CH (n) Aux Channel +
18 HPD Hot Plug Detect
19 Return Return
20 DP PWR Source Power Out (to sink)

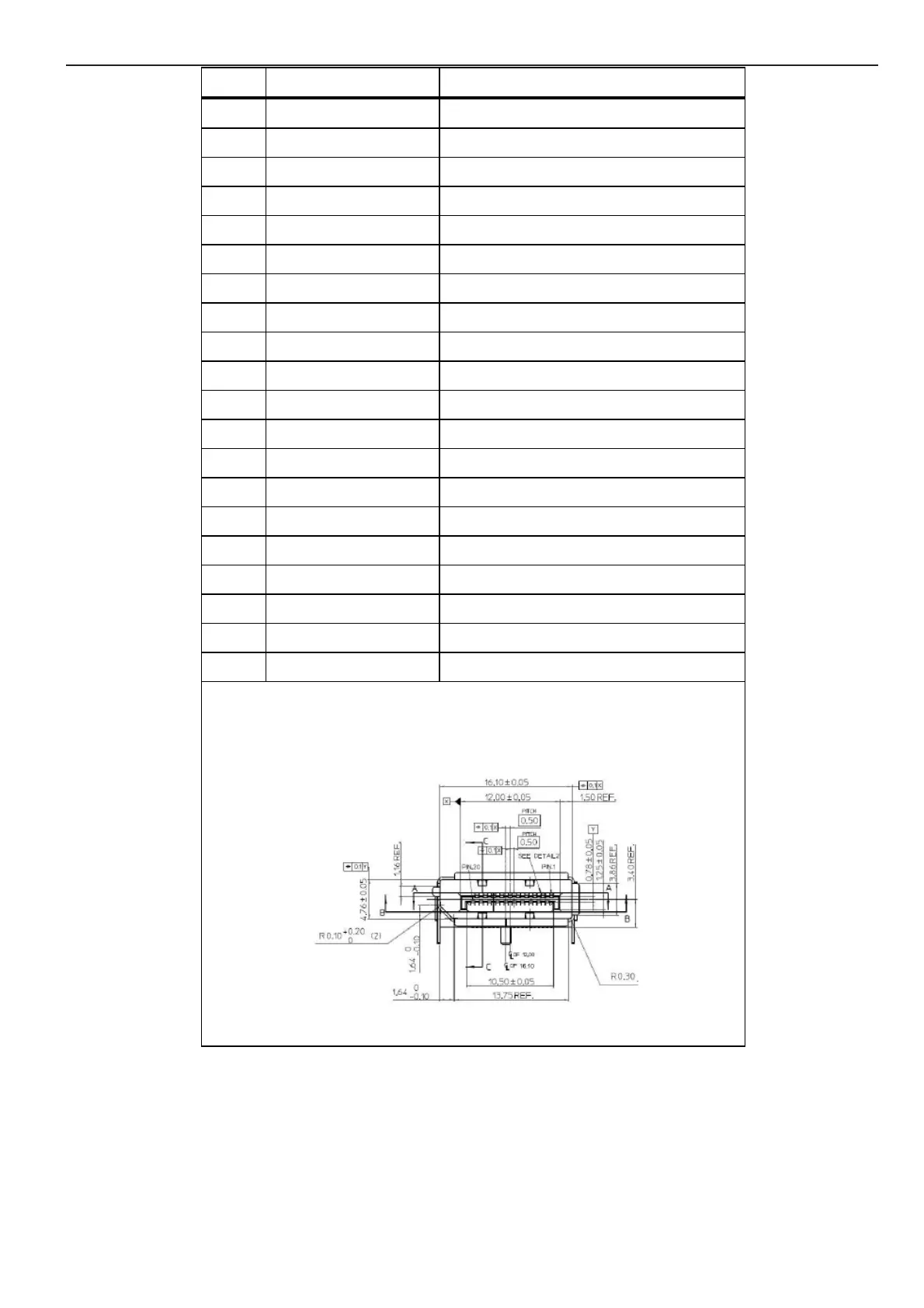

DISPLAY-PORT DIGITAL Source connector
