HP LP2475w - Panel Specifications; General Features and Ratings

24" LCD Color Monitor HP LP2475w
16
5. Panel Specification
LM240WU4 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent Lamp(CCFL)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.It is a transmissive type display
operating in the normally black mode. It has a 24inch diagonally measured active display area with WUXGA resolution
(1200 vertical by 1920 horizontal pixel array)Each pixel is divided into Red, Green and Blue sub-pixels or dots which are
arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale
signal for each dot,thus, presenting a palette of more than 16,7M(True) colors.

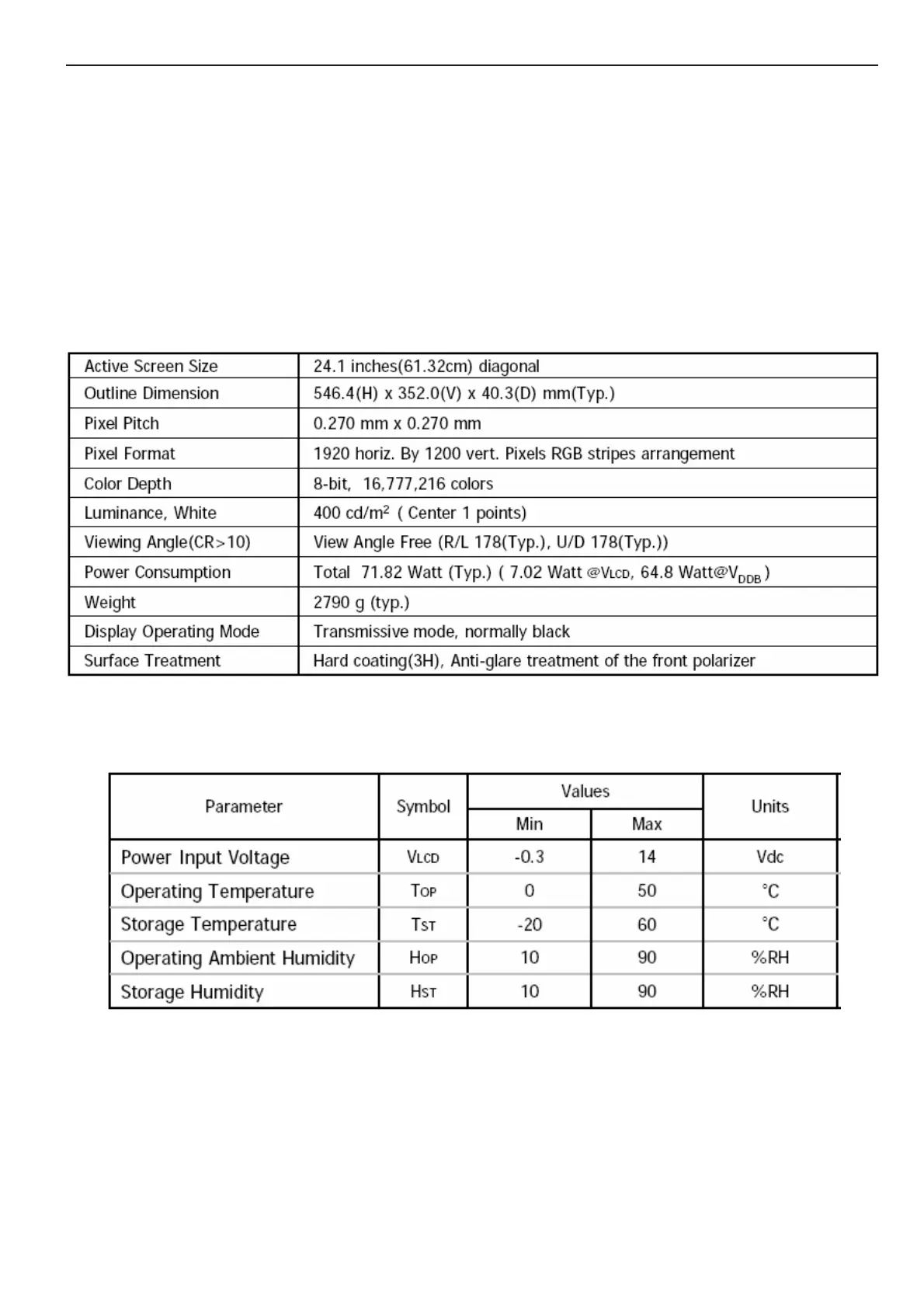

5.1 General Feature
Absolute Maximum Ratings
