3.
Select the Internal connector on the RAID card. Internal connector 1 is used to connect the first four
hard drives (maximum). Internal connector 2 is used to connect up to four additional drives.
4.
To connect the hard drives:
a.
Attach the coupled end of the data cable to the selected Internal connector on the RAID
controller (1).
b.
Attach the four splitter cables on the other end of the data cable to the data cable connectors
on the hard drives (2).
c.
To connect power to the hard drives, see the hard drive product documentation.

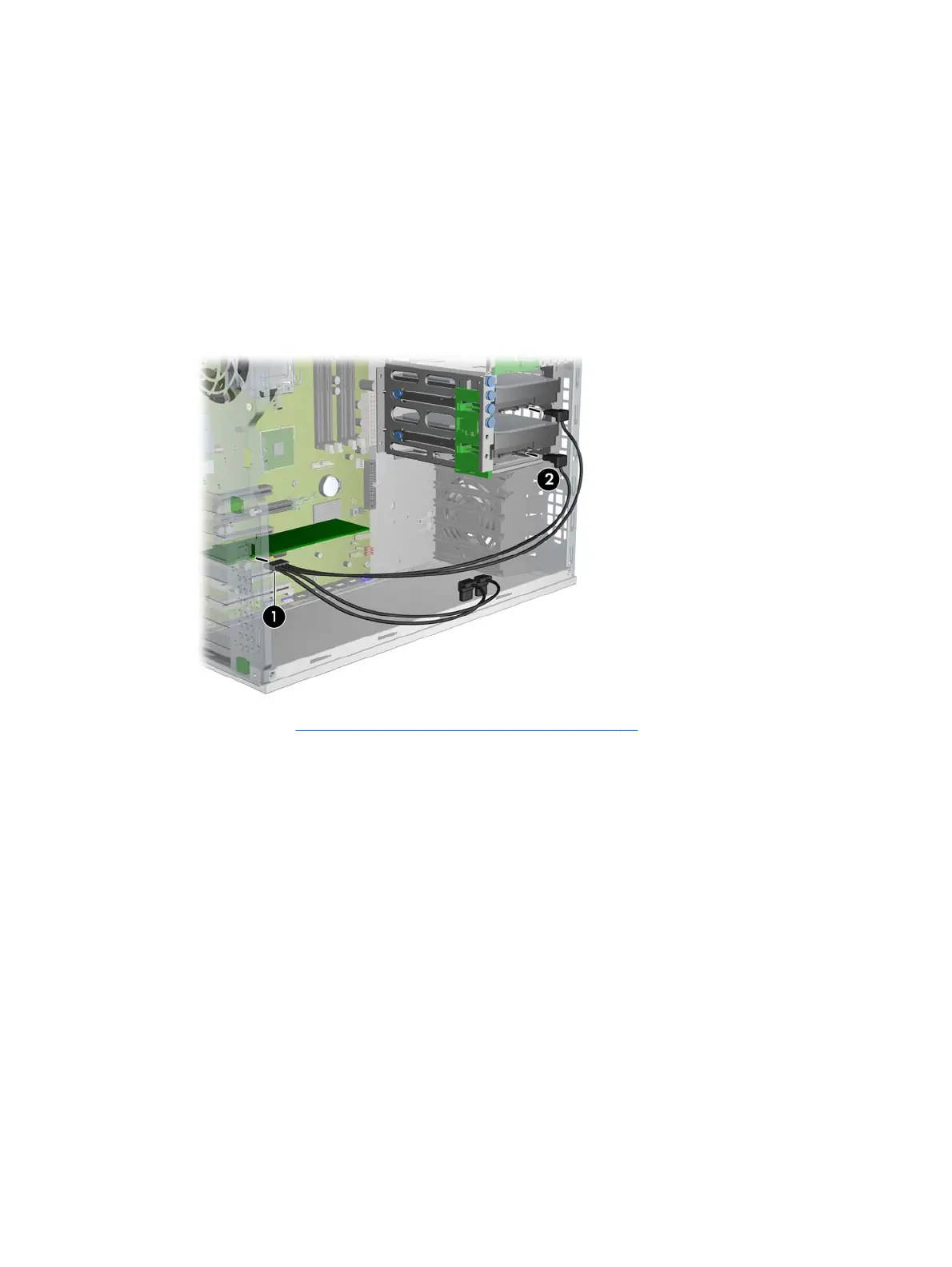

Figure 8 Data cable connections
5.
Continue with
Connecting the LED activity indicator on page 10.
ENWW
Step 3—Configuring the cabling
9
