HP LSI MegaRAID SAS 9260-8i User Manual

Connecting the LED activity indicator
1.
Attach one end of the hard drive activity LED cable to the SAS RAID controller card (1).
2.
Attach the other end of the hard drive activity LED cable to the hard drive LED activity connector
on the system board (2).
NOTE: To locate the hard drive activity LED (HDD-LED) connector on the system board, refer to the
service label inside the side access panel. Use the LED cable appropriate for the computer.

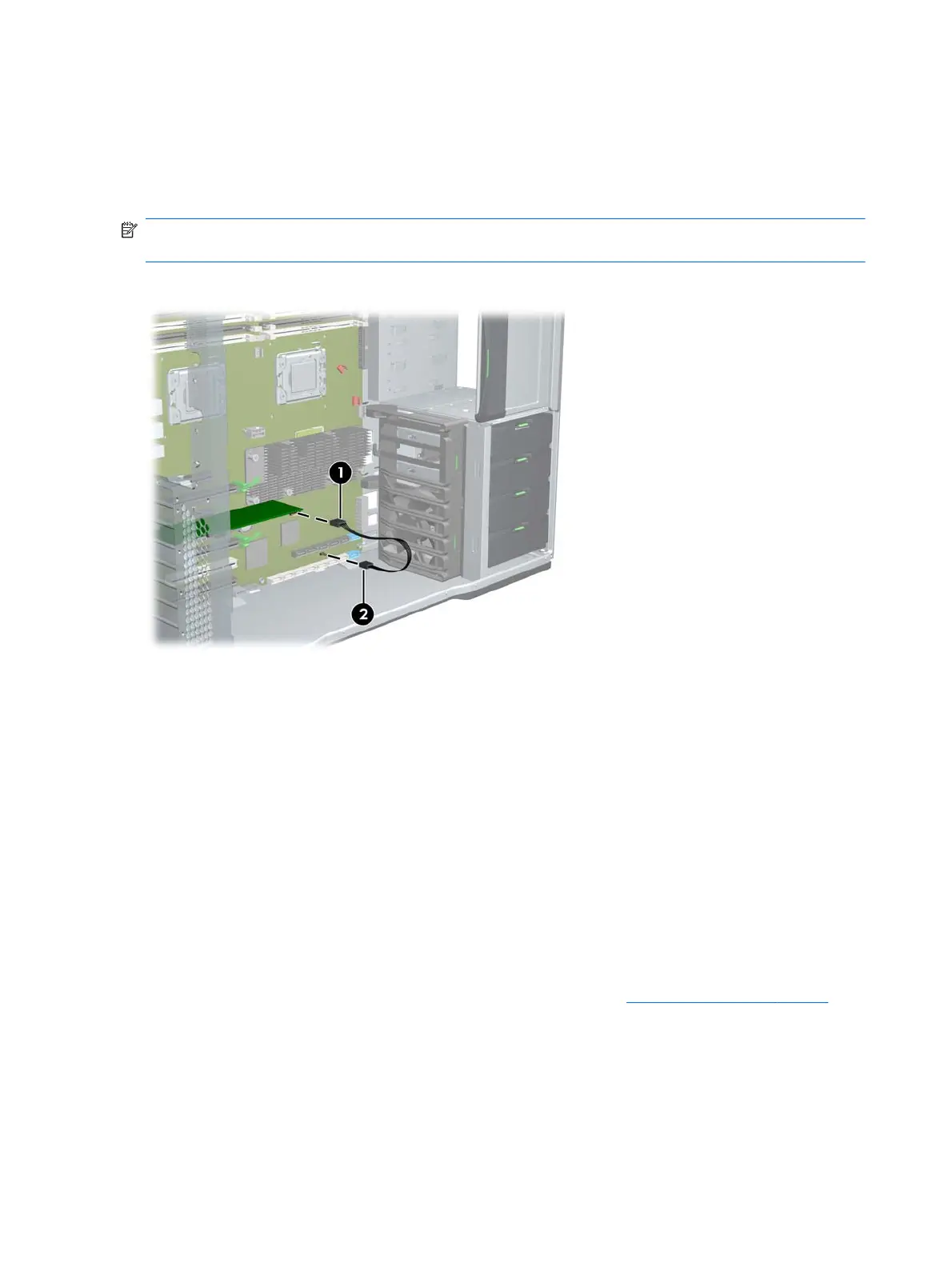

Figure 9 Attaching the HDD-LED cable
Step 4—Reassembling the computer
1.
Reinstall the card support, if applicable.
2.
Reinstall the side access panel.
3.
Reconnect power to the computer and all external devices.
4.
Restore power to the computer and all external devices.
Step 5—Loading and setting up driver software
For instructions on loading and setting up the SAS drivers for use with your computer, see the
manufacturer’s documentation shipped with the SAS RAID controller.
At the time of component installation, look for device firmware and driver updates, designated for your
computer model and operating system. You can obtain updates from
http://www.hp.com/support.
10 LSI MegaRAID SAS 9260-8i card installation ENWW
