New SAS HBA2.Remove plastic cover and connect SAS cable
to new HBA
1.
Power connector to server (LTO-6 and
LTO-5 only)
4.SAS connector to tape drive3.
Unused connector on SAS cable (do not
remove plastic cover)
6.Example SAS cable (not included in
product)
5.

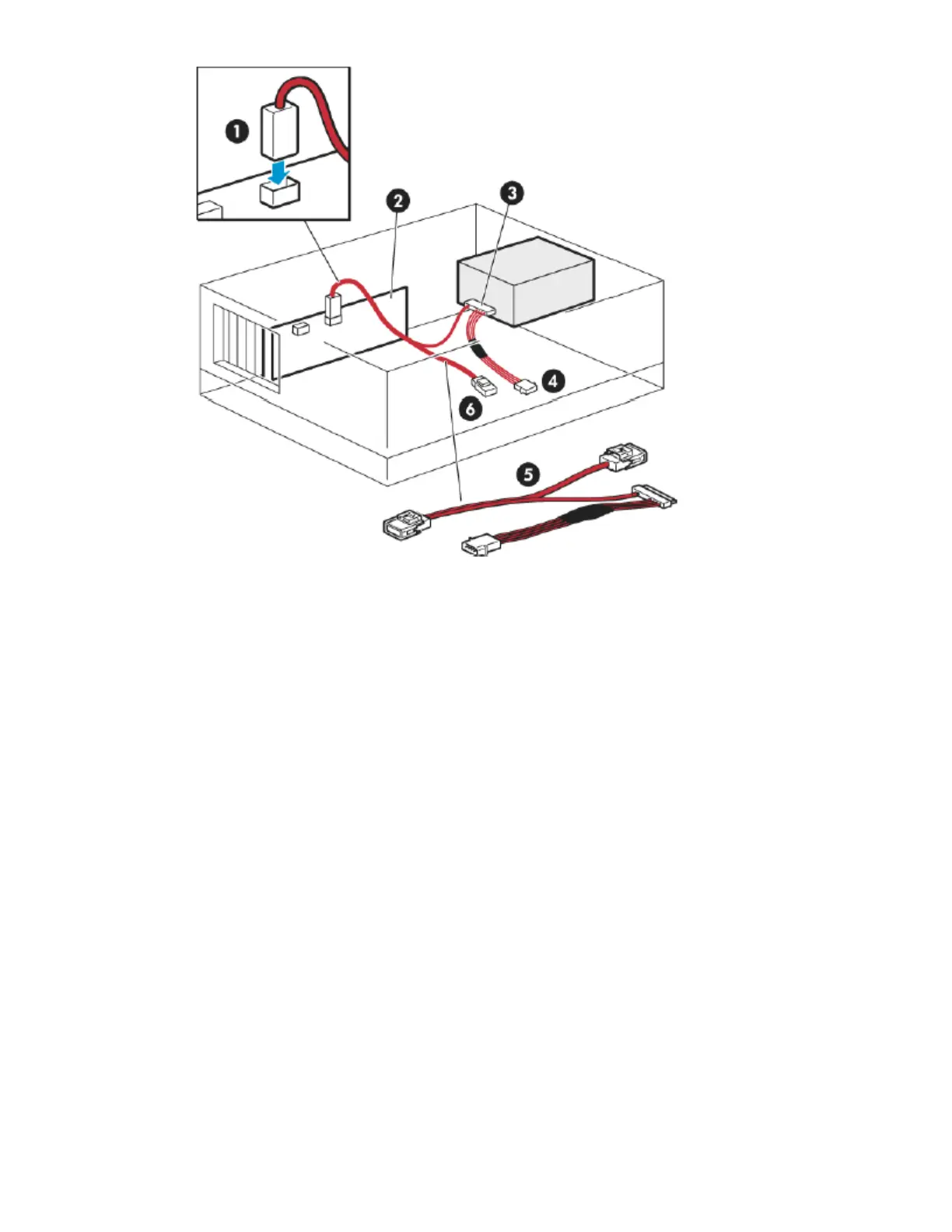

Figure 6 Cabling to a new HBA
3. Connect the other end of the SAS cable to the tape drive.
LTO-6 and LTO-5 tape drives: Connect a spare power cable from the server's internal power
supply to the power connector on the SAS data cable.
12 Installing an internal tape drive
