HP LTO-6 Ultrium FH SAS User Manual

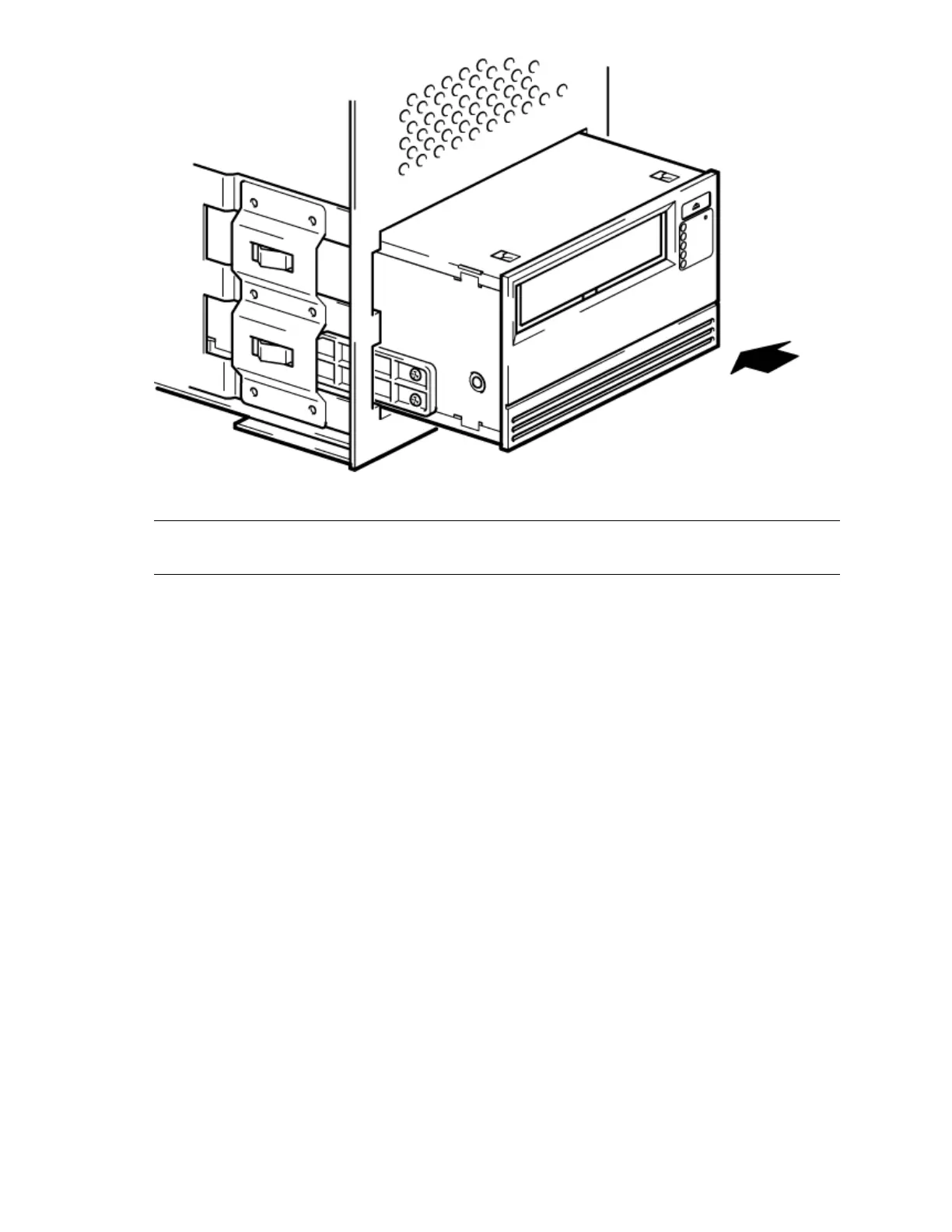

Figure 5 Installing the tape drive
NOTE: The illustration shows a server that uses mounting rails. If your server does not use mounting
hardware, check that the holes in the chassis are aligned with the holes in the side of the tape drive.
Do not secure the drive at this point because you may have to move the drive to get the cables into
place.
Connect data and power cords
SAS tape drives
The following instructions are valid ONLY IF you have purchased and installed an additional HBA.
Refer to the server documentation if you are connecting the tape drive to an unused port on a SAS
controller.
1. If necessary, install a new HBA. Follow the instructions supplied with the HBA to install it and
its driver.
2. Connect the HBA end of the SAS cable to the new HBA.
Connect data and power cords 11

HP LTO-6 Ultrium FH SAS Specifications

General

Storage Capacity (Native)	2.5 TB
Storage Capacity (Compressed)	6.25 TB
Data Transfer Rate (Native)	160 MB/s
Data Transfer Rate (Compressed)	400 MB/s
Interface	SAS
Buffer Size	512 MB
Technology	LTO-6 Ultrium
Interface Speed	6 Gb/s
Compatibility	LTO-6, LTO-5, LTO-4
Warranty	3 years
