HP Inc.
HP LaserJet Enterprise MFP M527 Series,
Color LaserJet Enterprise MFP M577 Series, and
PageWide Enterprise Color MFP 586 Series
Firmware with Jetdirect Inside Security Target
Version: 2.0 Copyright © 2008-2016 by atsec information security corporation and HP Inc. Page 12 of 98
Last update: 2016-06-07 or its wholly owned subsidiaries
HCD
Administrative
Computer
HTTP, OXPd, WS*, PJL, & SNMP
over IPsec
PJL over IPsec
Telephone service
Scan Images
Commands
Fax Images,
Commands
Commands, Images
Files
Remote Auth
LDAP over IPsec
Kerberos over IPsec
SMTP
Gateways
Remote File
Systems &
SharePoint
SMB, FTP, HTTP over IPsec
SMTP over IPsec
Syslog
Server
Syslog over IPsec
Fax Modem
Control
Panel
Scanner
Print Engine
Storage
Drive
Network
Client
Computers
Embedded
Network
Interface
Operating System
USB
(types A & B)
Disabled in
the evaluated
configuration
QuickSec
HCD System
Firmware
Jetdirect Inside
Firmware

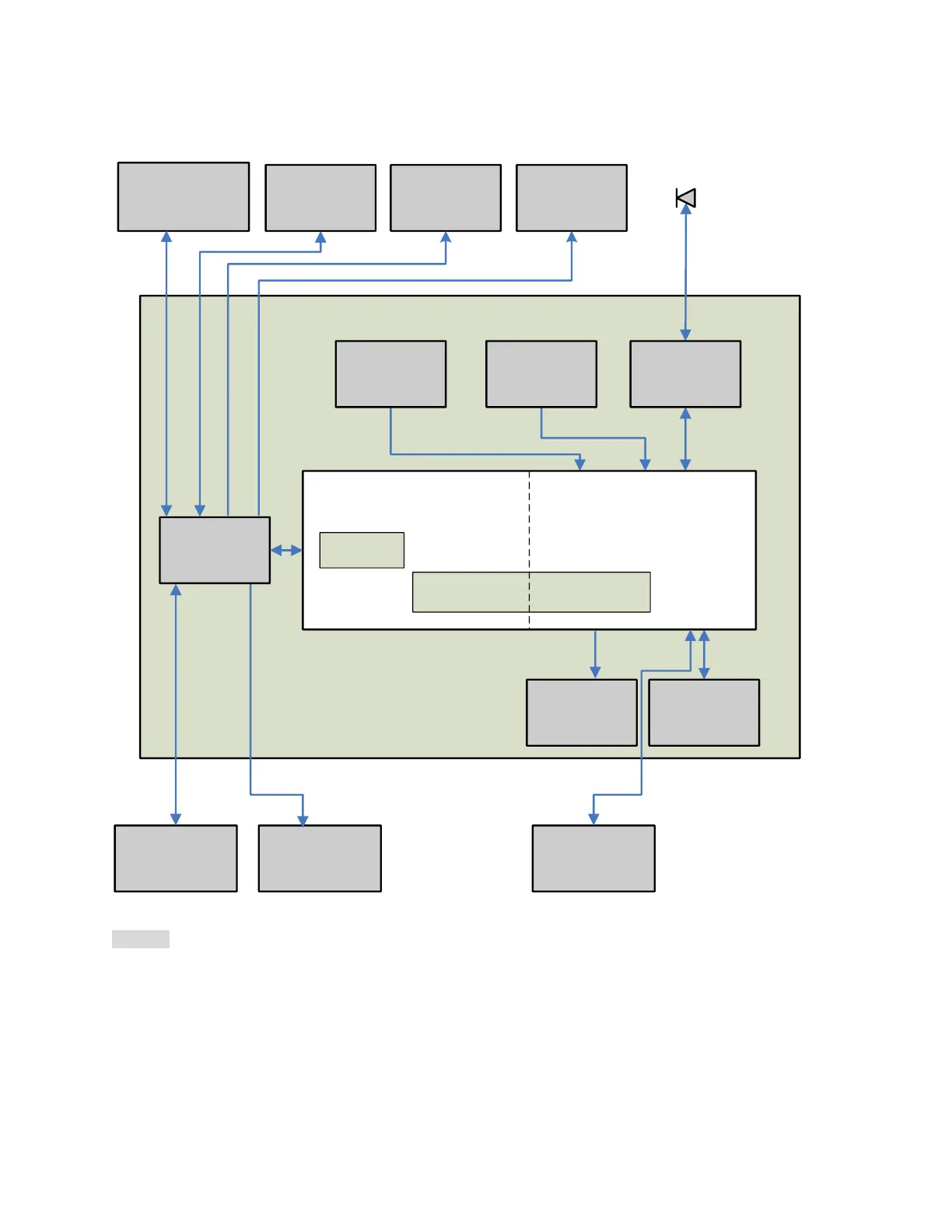

Figure 1: HCD physical diagram
Figure 1 shows a high-level physical diagram of an HCD with the unshaded areas representing the TOE
and the shaded areas indicating components that are part of the Operational Environment.
At the top of this figure is the Administrative Computer which connects to the TOE using Internet Protocol
Security (IPsec) with X.509v3 certificates for both mutual authentication and for protection of data from
disclosure and alteration. This computer can administer the TOE using the following interfaces over the
IPsec connection:
Embedded Web Server (EWS)
Simple Network Management Protocol (SNMP)
