The paper deck cassette media-out sensor detects the presence of paper in the paper deck cassette. Paper
deck cassette 3 is used to describe the Cassette lift-up operation in this section.

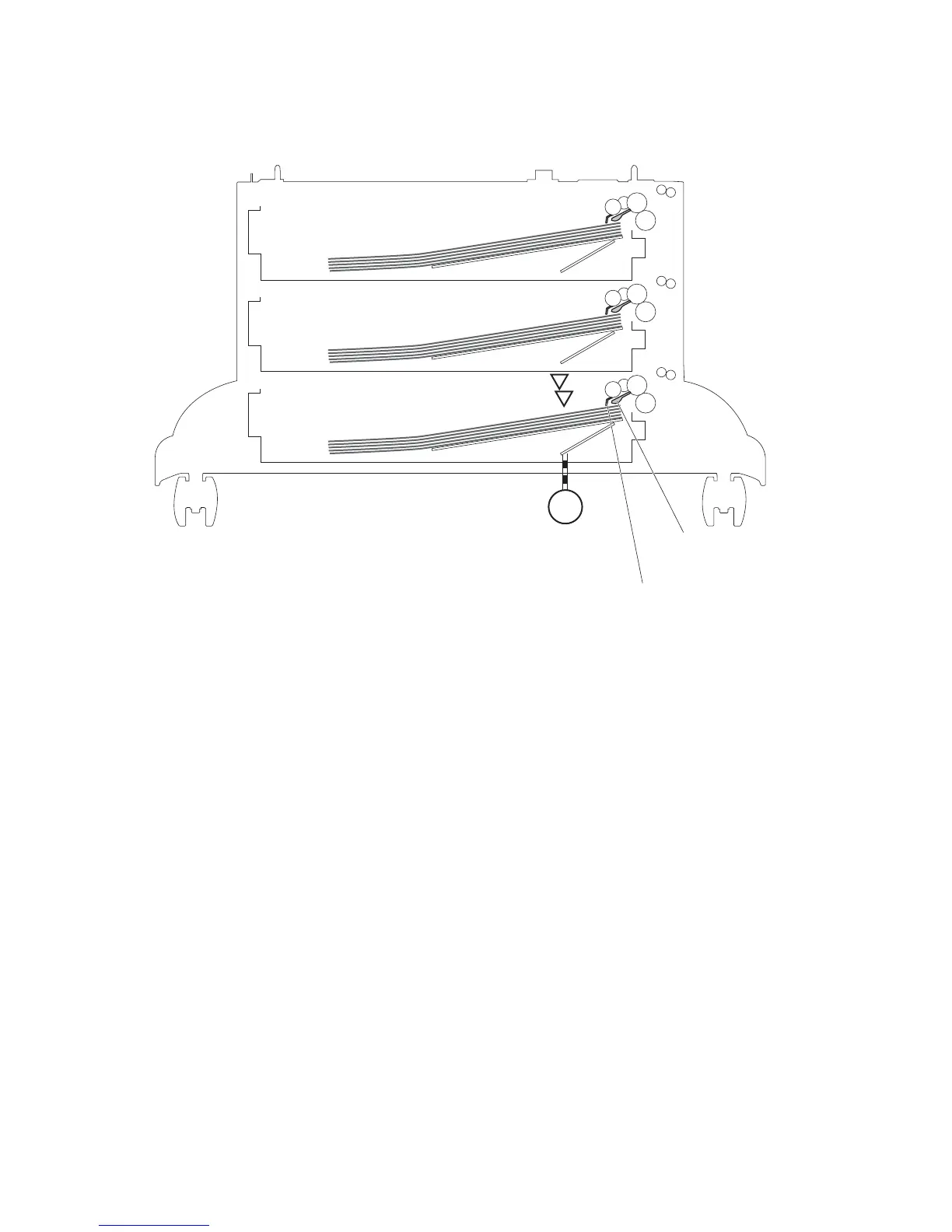

Figure 1-58 Cassette lift-up operation
M92
SR92
SR93
Lifter
Lifting plate
Paper deck cassette 3 lifter motor
Paper deck cassette 3 media stack surface sensor flag
Paper deck cassette 3 media out
sensor flag
Paper deck cassette 3 media stack surface sensor
Paper deck cassette 3 media out sensor
Paper deck cassette 1
Paper deck cassette 2
Paper deck cassette 3
Jam detection
The paper deck uses the following sensors to detect the presence of paper and to check whether paper is
being fed correctly or has jammed.
