HP M750 series

●
Paper deck cassette 1 media feed sensor (SR1)
●
Paper deck cassette 2 media feed sensor (SR81)
●
Paper deck cassette 3 media feed sensor (SR91)

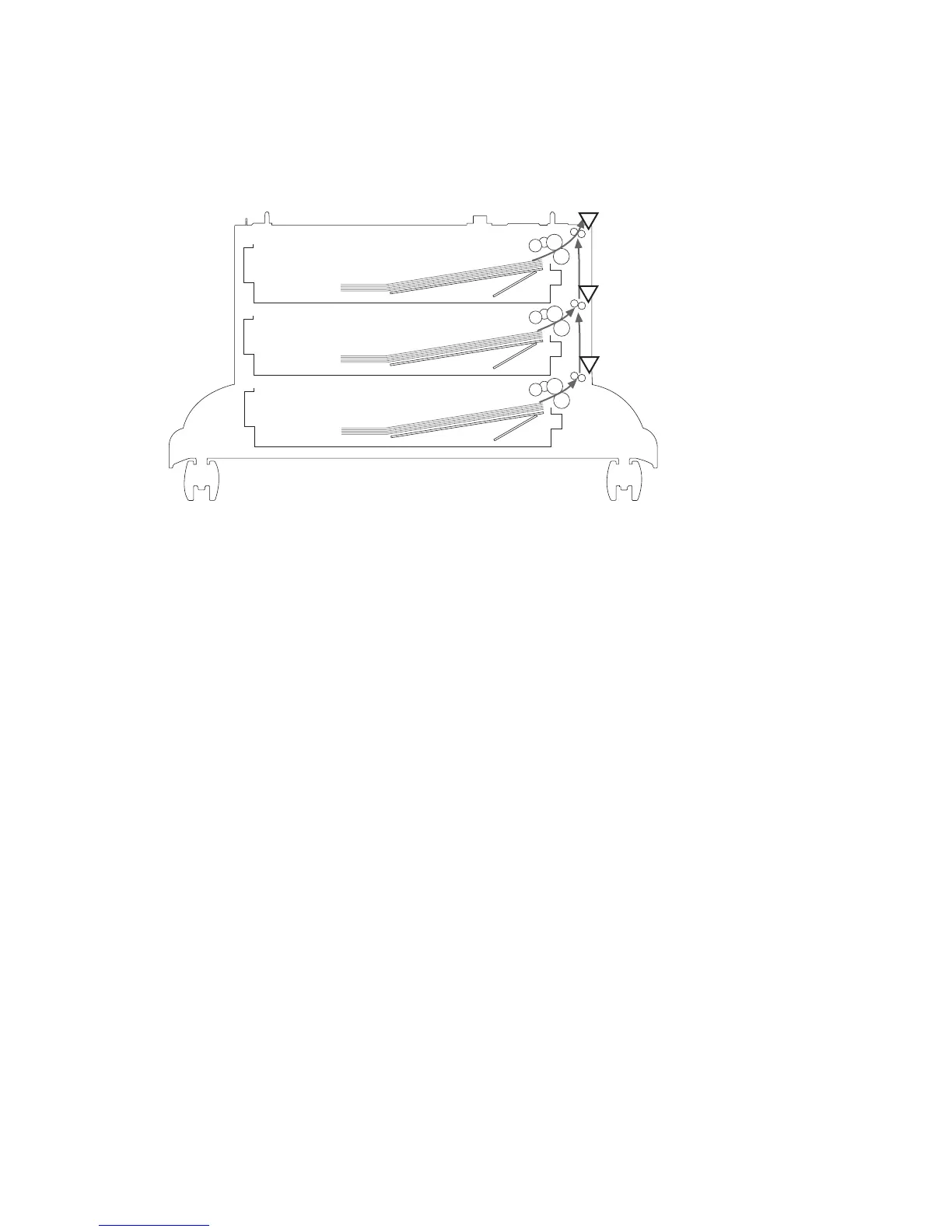

Figure 1-59 Jam detection
SR1
SR81
SR91
The paper deck detects the following jams.
●
Paper deck no pick jam 1
The paper deck cassette 1 media feed sensor does not detect the leading edge of paper within a
specified period after the paper deck cassette 2 media feed sensor detects the leading edge. The paper
deck cassette 2 media feed sensor does not detect the leading edge of paper within a specified period
after the paper deck cassette 3 media feed sensor detects the leading edge.
●
Paper deck no pick jam 2
The paper deck cassette 1 media feed sensor does not detect the leading edge of paper within a
specified period, including a retry, after the paper deck cassette 1 pickup solenoid has turned on. The
paper deck cassette 2 media feed sensor does not detect the leading edge of paper within a specified
period, including a retry, after the paper deck cassette 2 pickup solenoid has turned on. The paper deck
cassette 3 media feed sensor does not detect the leading edge of paper within a specified period,
including a retry, after the paper deck cassette 3 pickup solenoid has turned on.
●
Paper deck residual paper jam
Any one of the following sensors detects a presence of paper after the automatic delivery is performed
when the printer is turned on or when the door is closed.
◦
Paper deck cassette 1 media feed sensor
◦
Paper deck cassette 2 media feed sensor
◦
Paper deck cassette 3 media feed sensor
●
Paper deck door open jam
A paper deck door open is detected during a paper-feed operation.
●
Automatic Delivery
