Toner-collection unit
NOTE: The toner-collection unit (TCU) is designed for a single use. Do not try to empty the toner-collection
unit and reuse it. To recycle a discarded toner-collection unit, follow the instructions that come with a
replacement toner-collection unit.
1. Open the TCU access door (callout 1) on the product back side.
2. Grasp the top of the TCU (callout 2), and then remove it from the product.

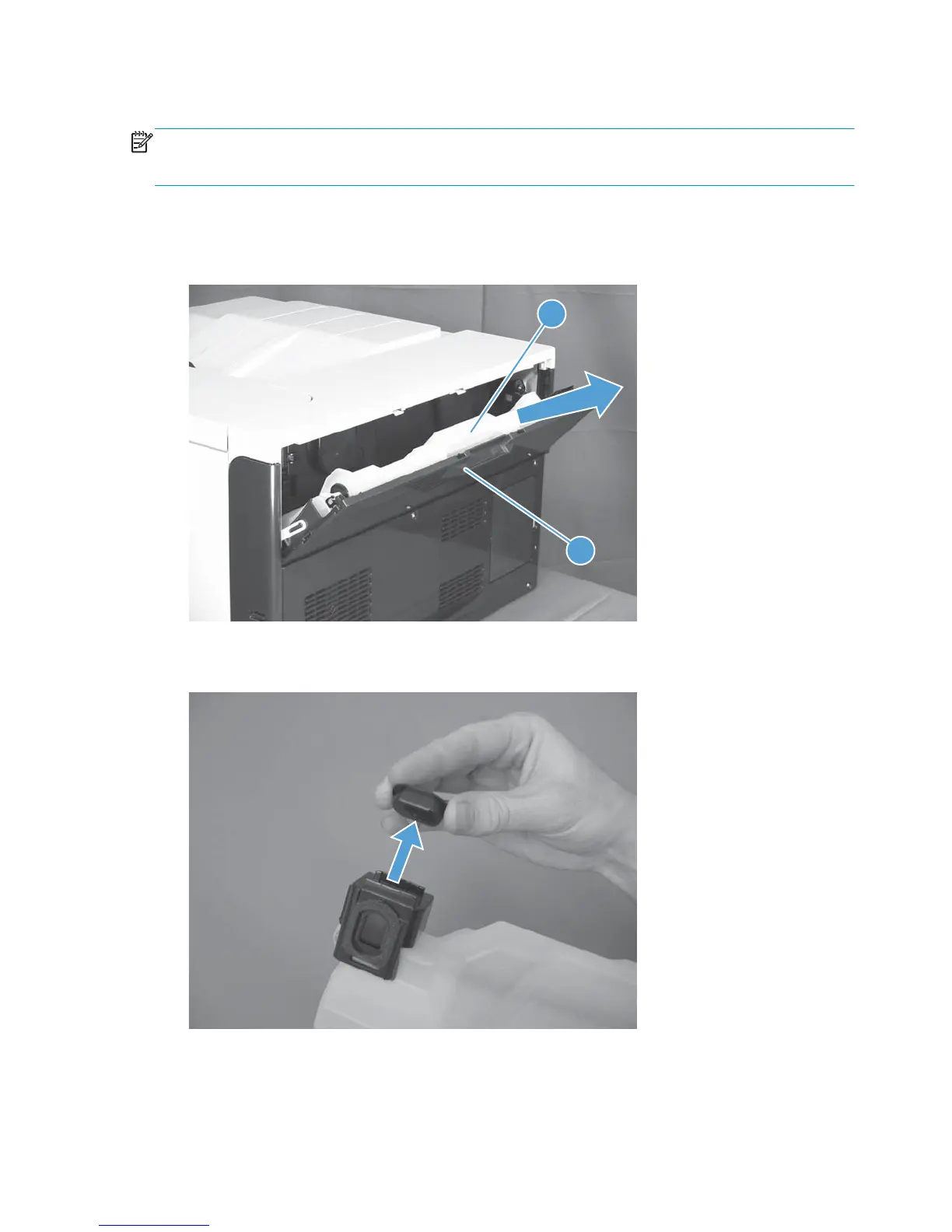

Figure 2-2 Remove the toner-collection unit (1 of 3)
2
1
3. Remove the plug from the discarded TCU.
Figure 2-3 Remove the toner-collection unit (2 of 3)
88 Chapter 2 Removal and replacement ENWW
