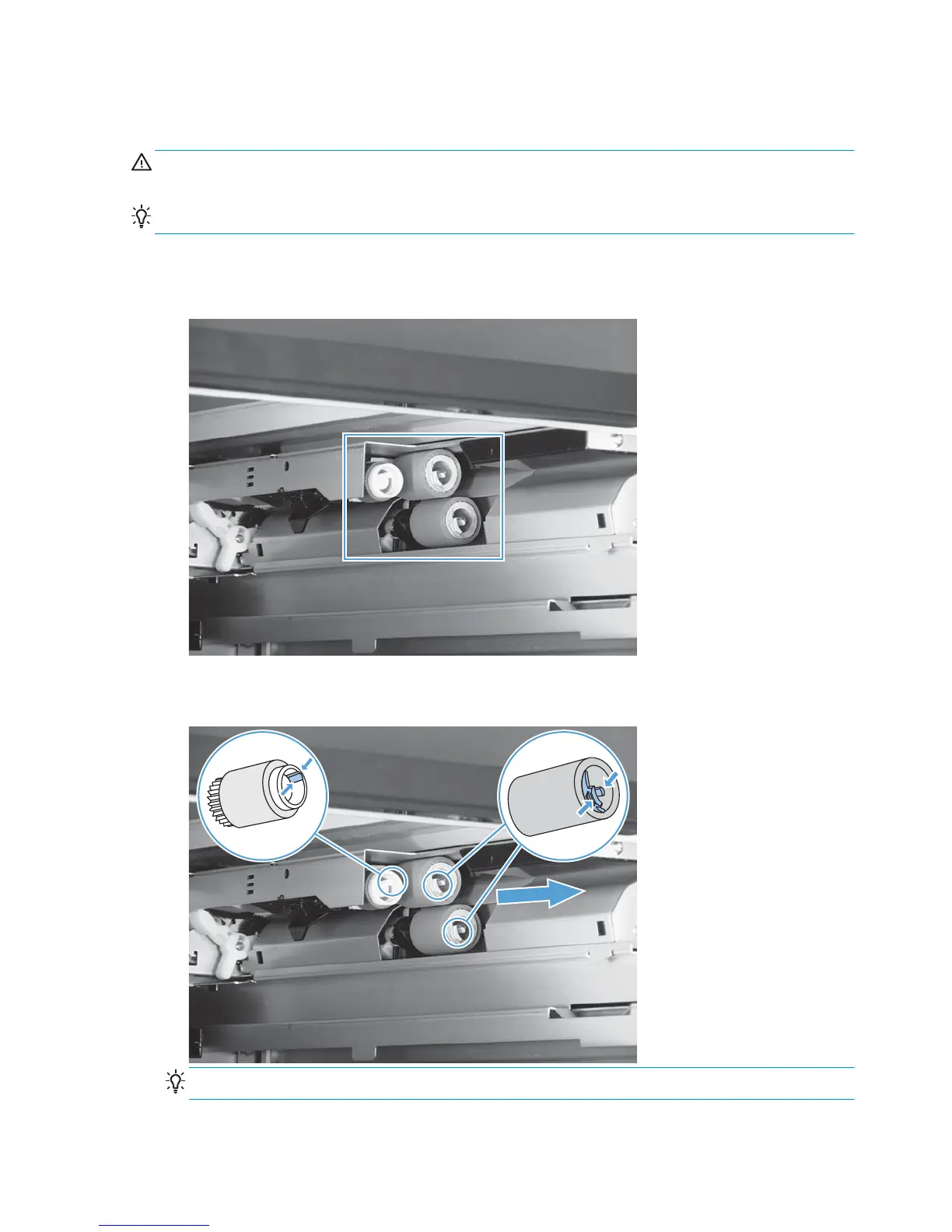

Pickup roller, separation roller, and feed roller (1 x 500-sheet and 3 x 500-sheet
paper feeders)
CAUTION: Do not touch the spongy roller surface unless you are replacing the roller. Skin oils on the roller
can cause paper pickup problems.
TIP: You do not have to separate the product from the feeder to remove these rollers.
1. Remove the Tray 3 or Tray 4/5/6 cassette from the product, and then locate the rollers on the right-
hand side of the tray cavity.
Figure 2-15 Remove the 1 x 500 or 3 x 500 rollers (1 of 2)
2. Release three tabs, and then pull the rollers in the direction of the arrow.
Figure 2-16 Remove the 1 x 500 or 3 x 500 rollers (2 of 2)
Reinstallation tip When you reinstall the rollers, make sure that the rollers snap into place.
96 Chapter 2 Removal and replacement ENWW
