Secondary transfer roller
CAUTION: Do not touch the spongy roller surface unless you are replacing the roller. Skin oils on the roller
can cause image quality problems.
NOTE: If the secondary transfer roller is replaced, HP recommends that the ITB be replaced also. If both
components are replaced at the same time, you must use the control-panel menus to reset the Transfer Kit
menu item. See
Reset the New Transfer Kit setting at the control panel on page 99.
1. Open the right-door assembly.
2. Grasp one of the blue round features (callout 1) on either end of the transfer roller, and then lift the
transfer roller (callout 2) off of the product.

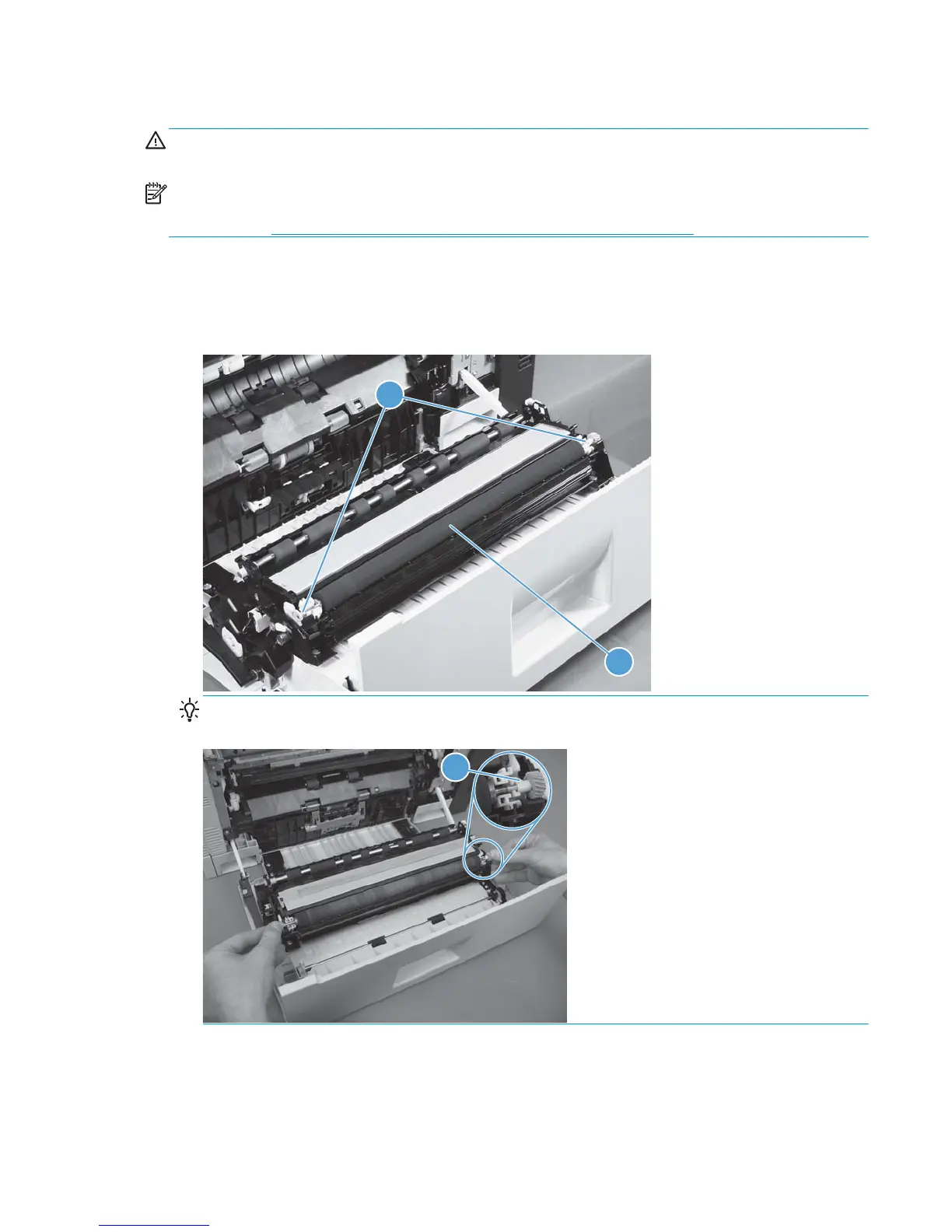

Figure 2-17 Remove the transfer roller
2
1
TIP: Place the new roller assembly in place with the roller gear (callout 1) on the right side, and then
press down to ensure that the roller shaft snaps securely in the roller clasps.
1
ENWW Removal and replacement procedures 97
