Intermediate transfer belt (ITB)
CAUTION: Do not touch the black-plastic belt. Skin oils and fingerprints on the belt can cause print-quality
problems. Always place the ITB on a flat surface in a safe and protected location.
NOTE: If the ITB assembly is replaced, HP recommends that the secondary transfer roller be replaced also.
If both components are replaced at the same time, you must use the control-panel menus to reset the
Transfer Kit menu item. See
Reset the New Transfer Kit setting at the control panel on page 99.
1. Open the right-door assembly.
2. Use both hands to grasp the blue levers (callout 1), apply slight downward pressure, and pull the ITB
toward you at a downward angle.

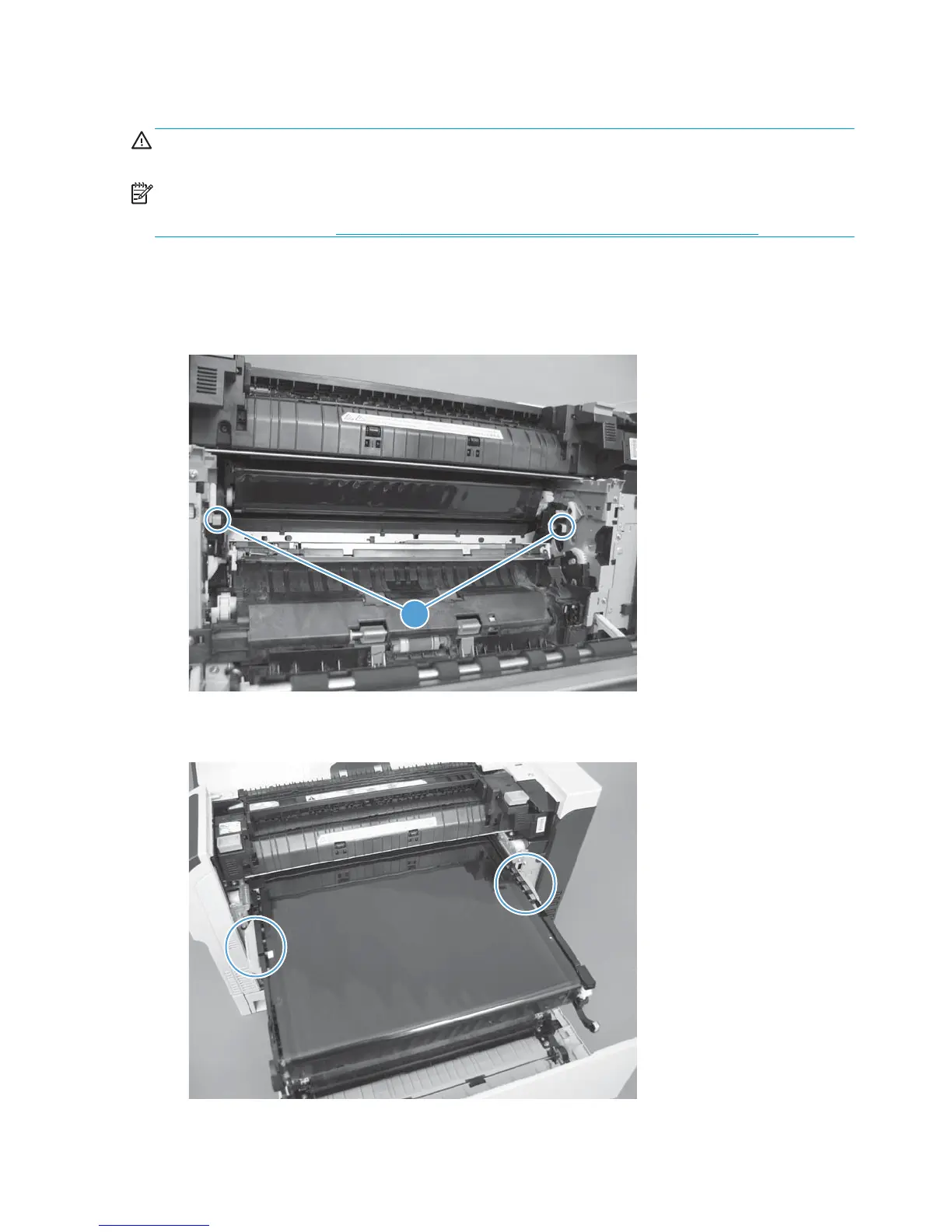

Figure 2-18 Remove the intermediate transfer belt (1 of 3)
1
3. Pull the ITB out of the product until two large handles expand along the right and left side of the ITB.
Figure 2-19 Remove the intermediate transfer belt (2 of 3)
98 Chapter 2 Removal and replacement ENWW
