Left cover
1. Remove Tray 2 from the product.
2. Open the front door.
3. Remove three screws (callout 1). Starting from the left side of the cover, release six tabs (callout 2), and
then remove the cover from the product.

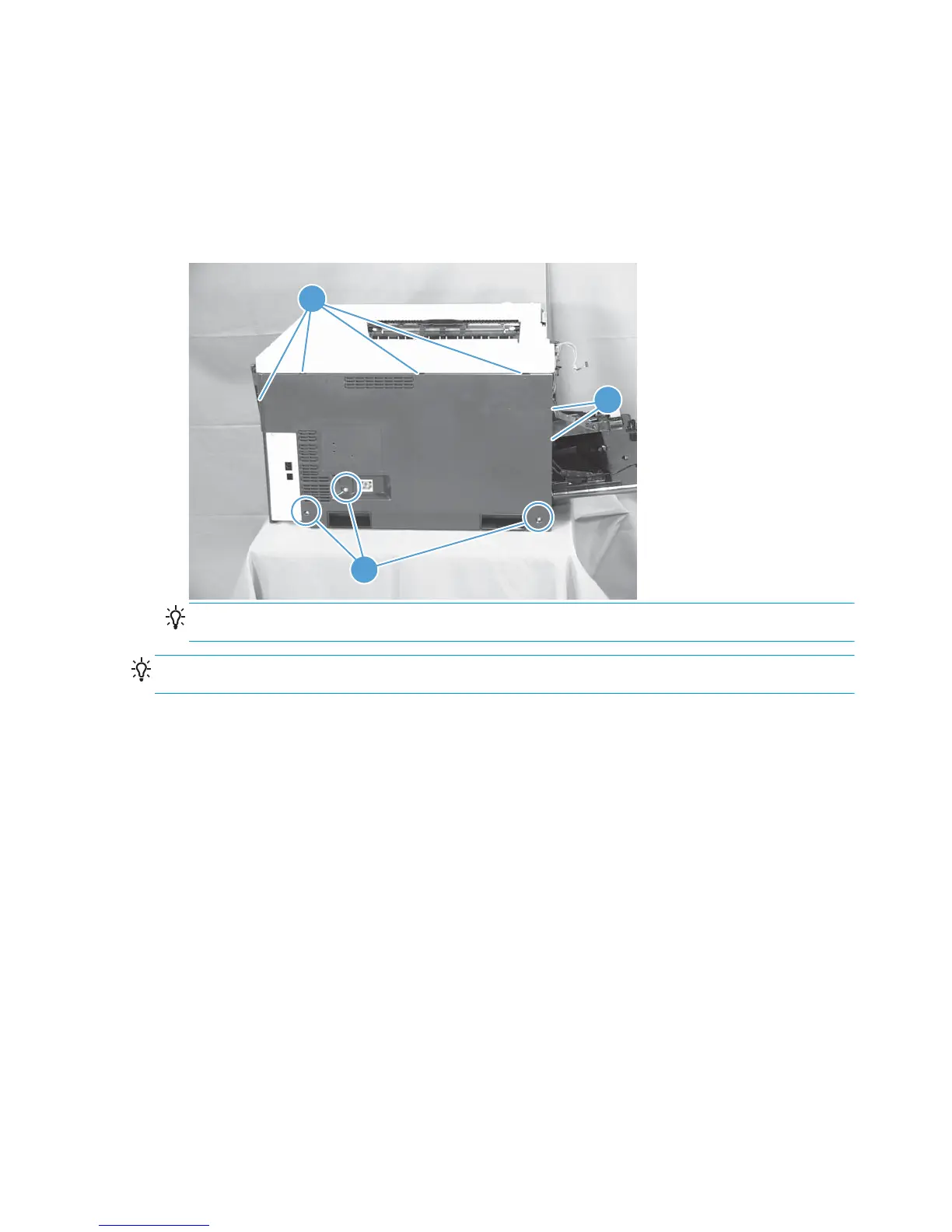

Figure 2-33 Remove the left cover
2
1
2
TIP: Opening the toner-collection door might make it easier to release the tabs on the left side of the
cover.
Reinstallation tip If the front door will not close after the left cover has been reinstalled, verify that the
two tabs on the right side of the cover have been aligned correctly with the product chassis.
110 Chapter 2 Removal and replacement ENWW
