Toner collection unit access door
1. Open the toner collection unit access door (callout 1), remove the toner collection unit, and then release
the link arm (callout 2) on the left side of the door.

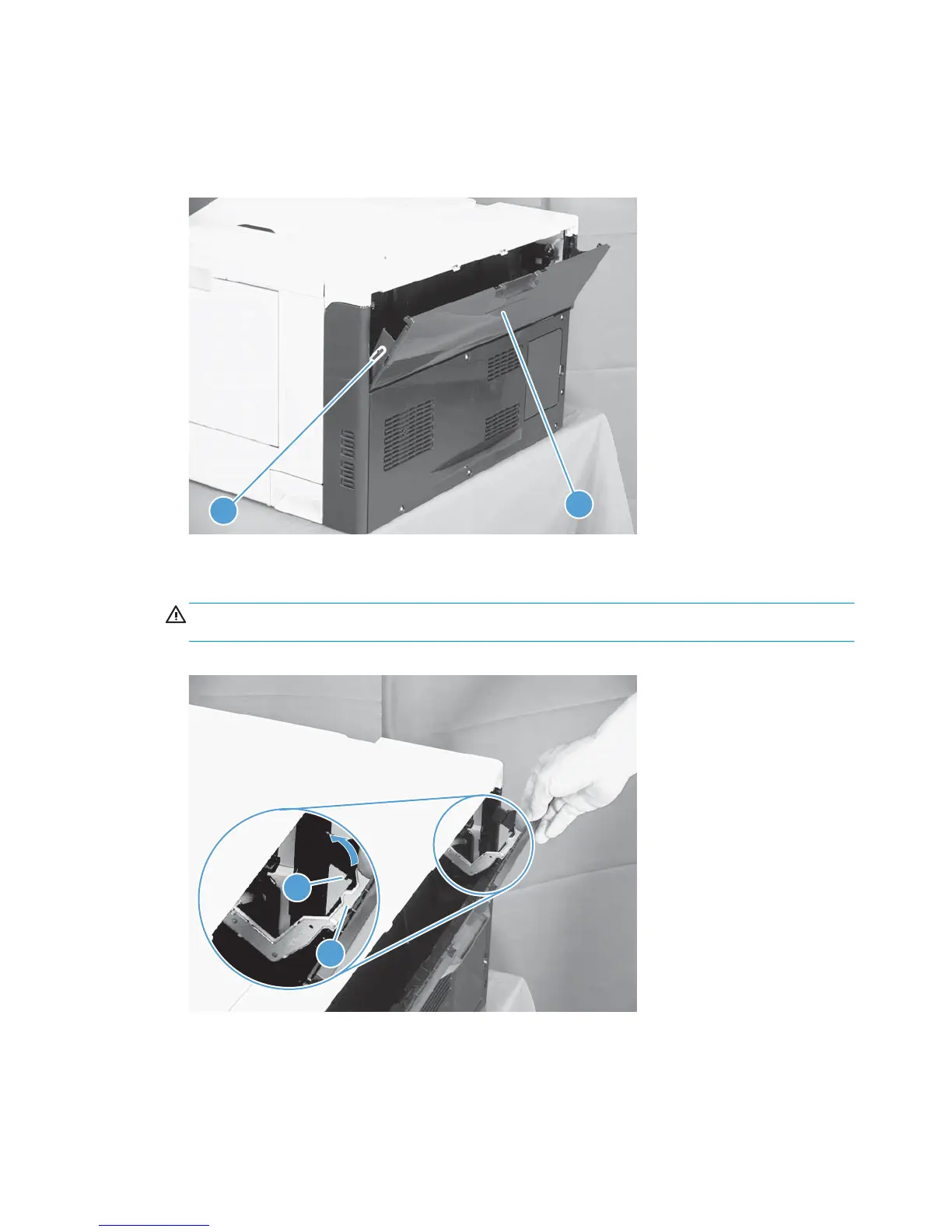

Figure 2-35 Remove the toner collection unit access door (1 of 3)
1
2
2. Partially close the door so that the right link arm (callout 1) can clear the stop (callout 2) on the door,
and then disengage the link arm from the door.
CAUTION: Do not disconnect the right-hand link arm when the door is completely open. Doing so can
disconnect the link arm spring.
Figure 2-36 Remove the toner collection unit access door (2 of 3)
1
2
112 Chapter 2 Removal and replacement ENWW
