Front-door assembly
1. Remove the control panel. See Right-front cover and control-panel assembly on page 108.
2. Open the front door.
3. Remove one screw (callout 1) and the inner cover rail mount (callout 2).
CAUTION: As shown in Figure 2-43 Remove the front-door assembly (2 of 4) on page 117, when
removing the inner cover rail mount (callout 3), hold down the inner cover (callout 4) with one hand to
prevent it from springing back at the product.

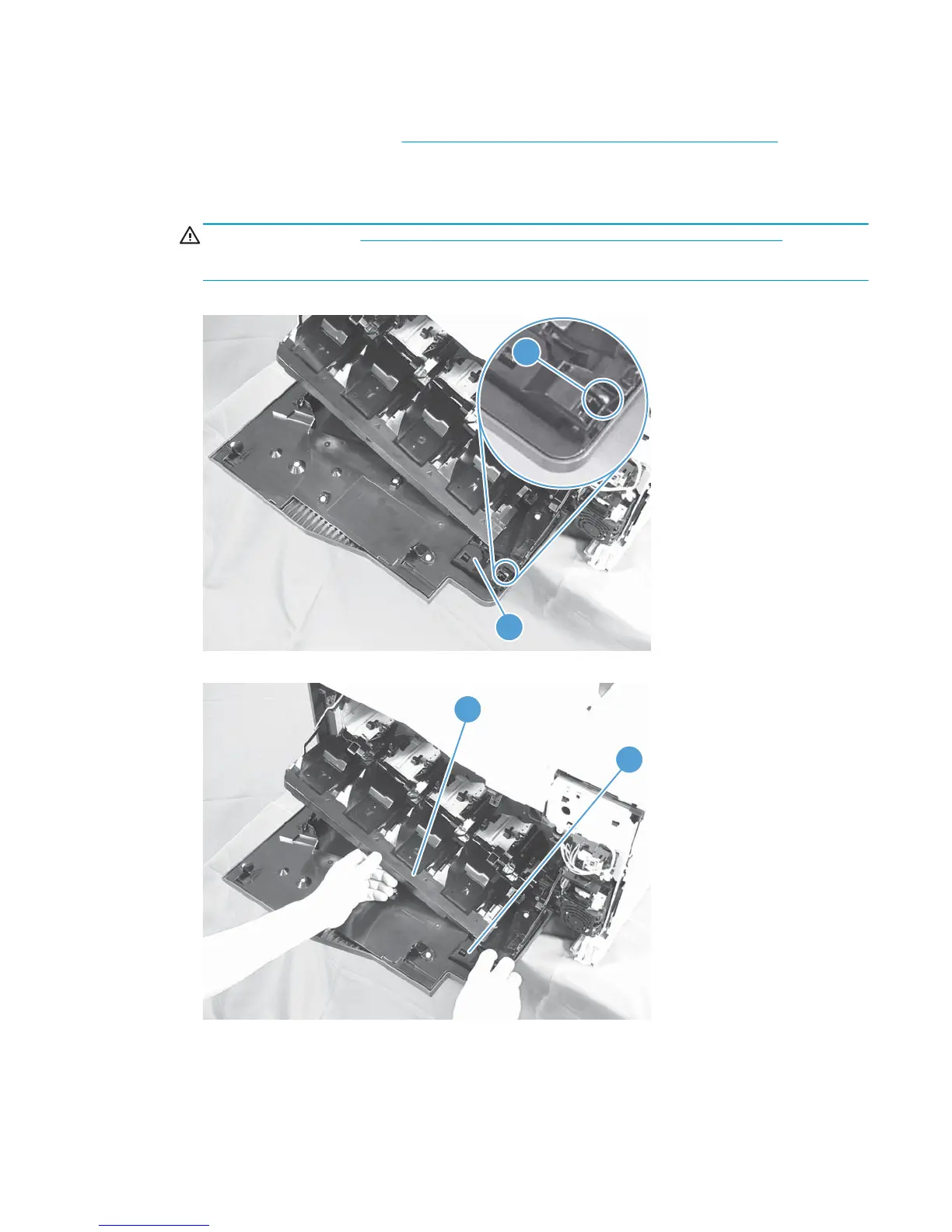

Figure 2-42 Remove the front-door assembly (1 of 4)
1
2
Figure 2-43 Remove the front-door assembly (2 of 4)
3
4
ENWW Removal and replacement procedures 117
