Main assemblies
TIP: For clarity, some photos in this chapter show components removed that would not be removed to
service the product. If necessary, remove the components listed at the beginning of a procedure before
proceeding to service the product.
Formatter case
Before proceeding, remove the following components:
●
Formatter PCA. See
Formatter PCA on page 100.
●
Left cover. See
Left cover on page 110.
●
Rear cover. See
Rear cover on page 111.
Remove the formatter case
1. Remove two screws (callout 1).

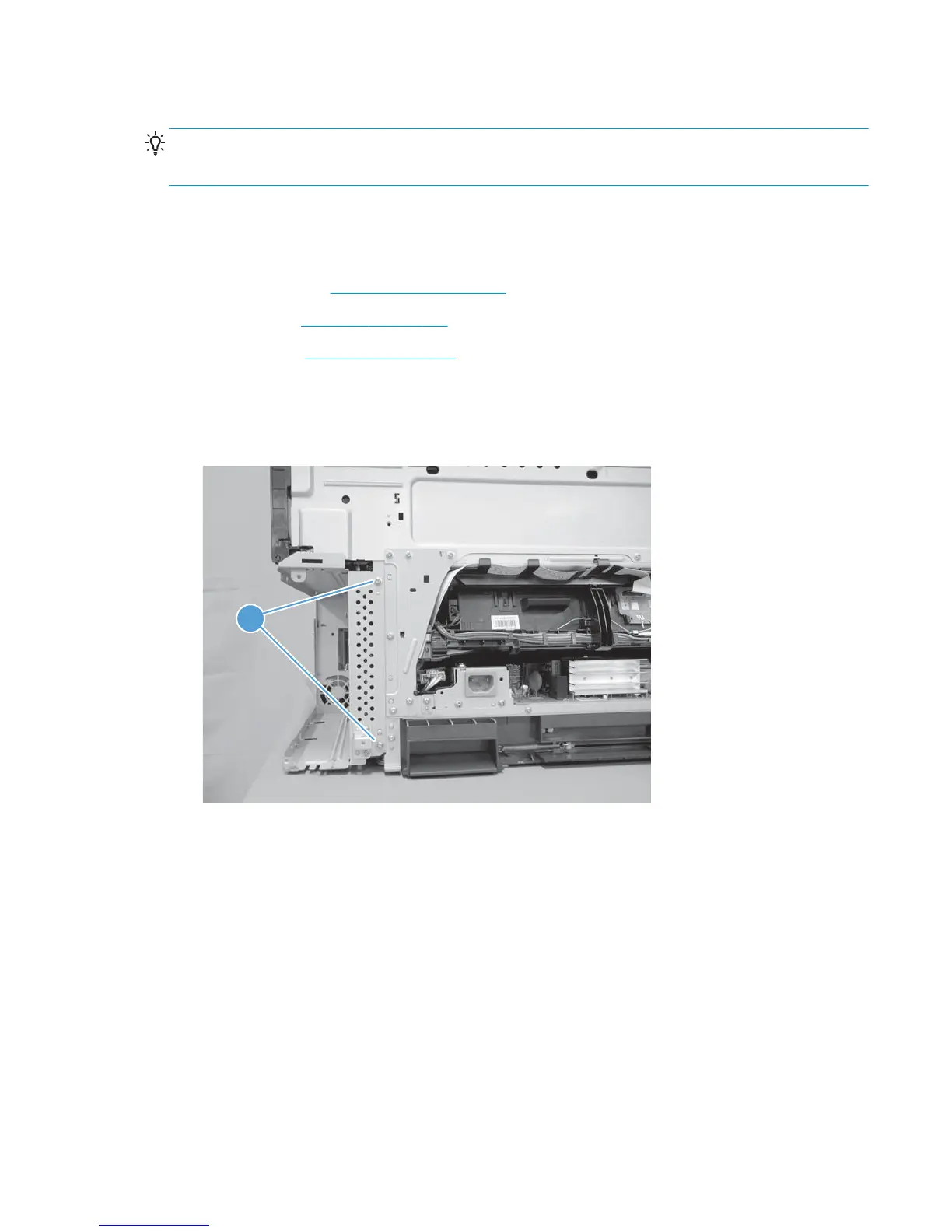

Figure 2-52 Remove the formatter case assembly (1 of 2)
1
ENWW Removal and replacement procedures 123
