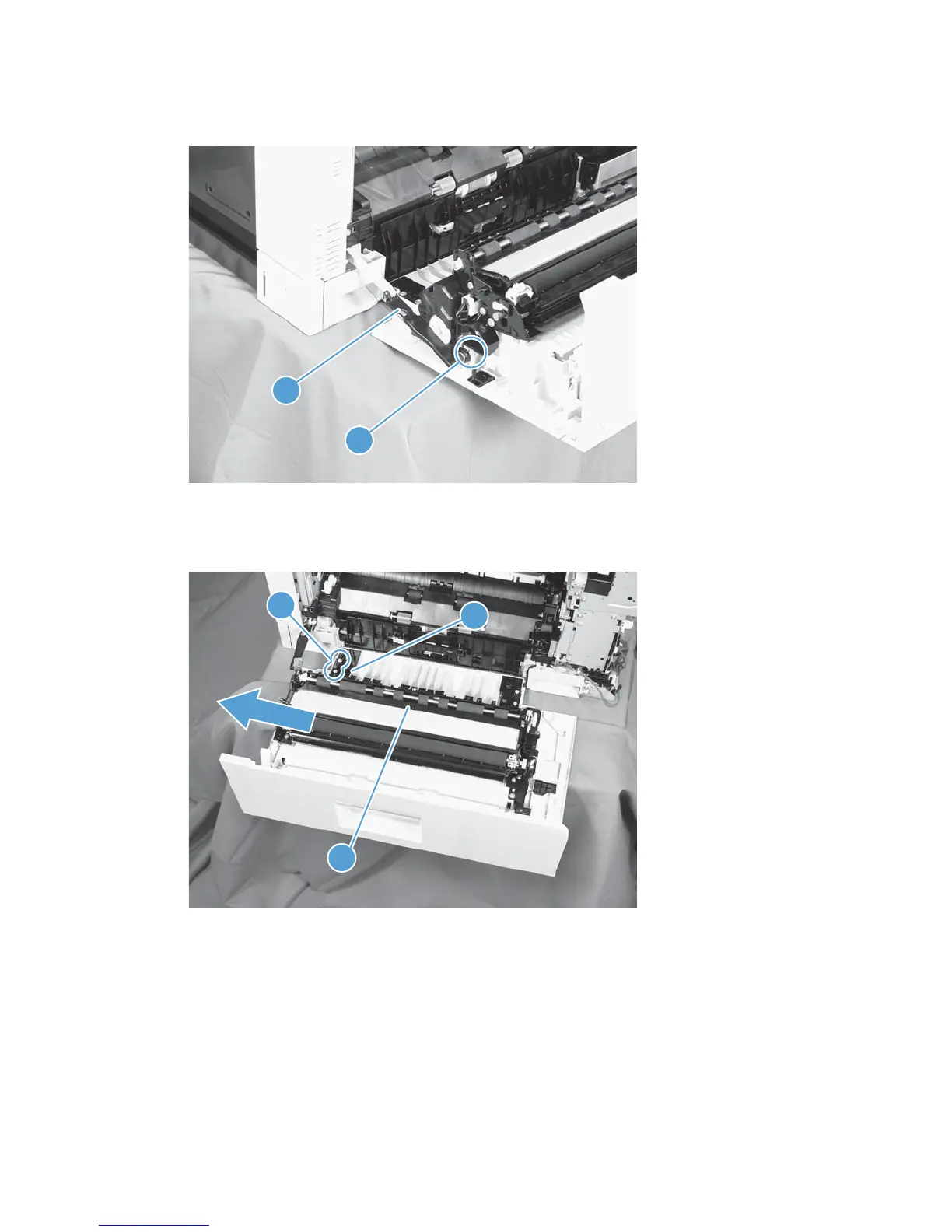

6. Remove one screw (callout 1), and then release the link arm (callout 2).
Figure 2-50 Remove the right-door assembly (5 of 6)
2
1
7. Remove two screws (callout 1), remove the hinge (callout 2), and then slide the right-door assembly
(callout 3) to the left to remove it.
Figure 2-51 Remove the right-door assembly (6 of 6)
1
2
3
122 Chapter 2 Removal and replacement ENWW
