Laser/scanner assembly
CAUTION: Do not replace the laser scanner and the formatter PCA at the same time. The settings for the
laser scanner are stored in the formatter RAM. When you install a new laser scanner, it reads the settings
from the formatter.
Before proceeding, remove the following components:
●
Tray 2
●
Left cover. See
Left cover on page 110.
Remove the laser/scanner assembly
1. Open the front door.
2. On the left side of the product, pinch and remove the fan duct (callout 1), and then disconnect the two
flat cables (callout 2).

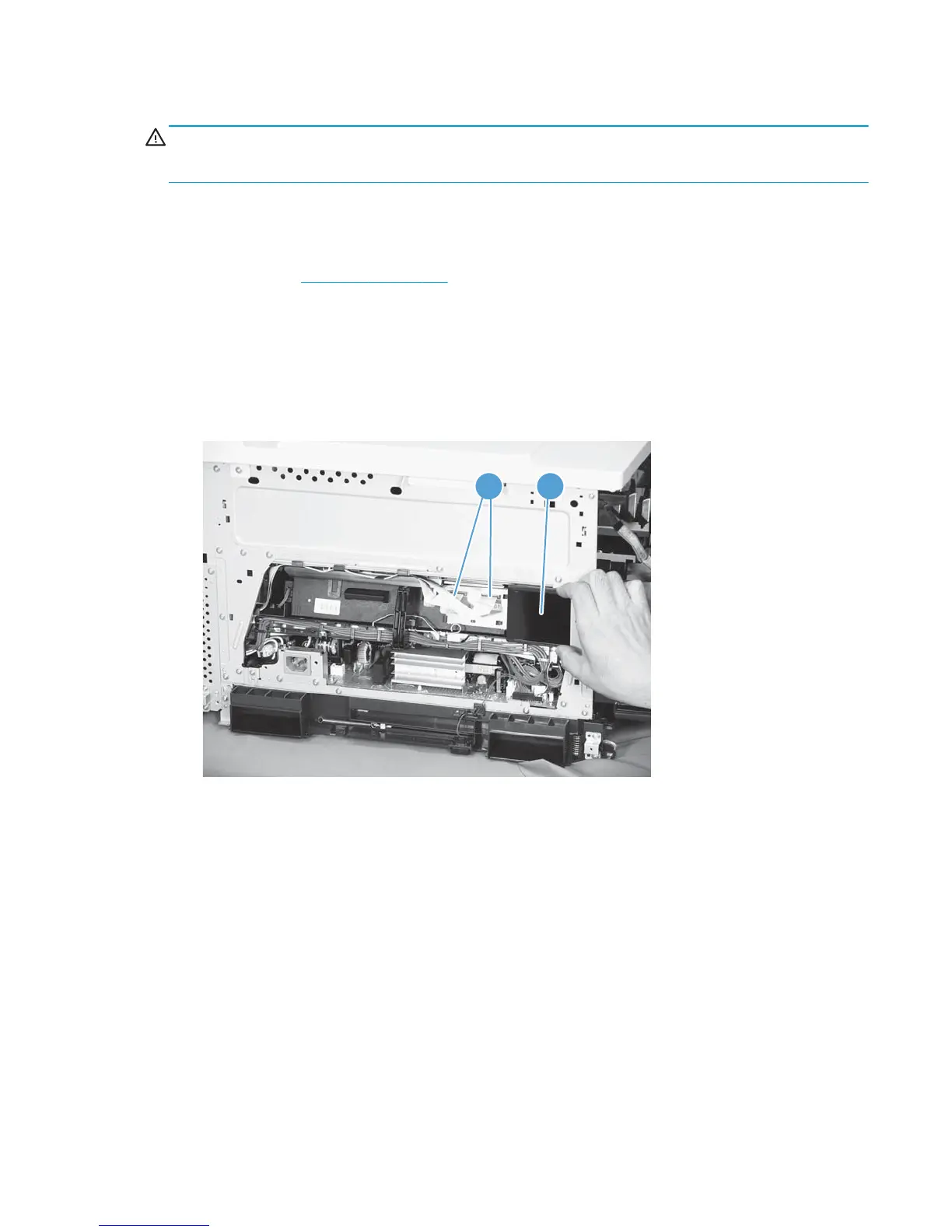

Figure 2-54 Remove the laser/scanner assembly (1 of 4)
2 1
ENWW Removal and replacement procedures 125
