3. Release one tab (callout 1), remove the stopper (callout 2), and then disconnect one connector (callout
3).

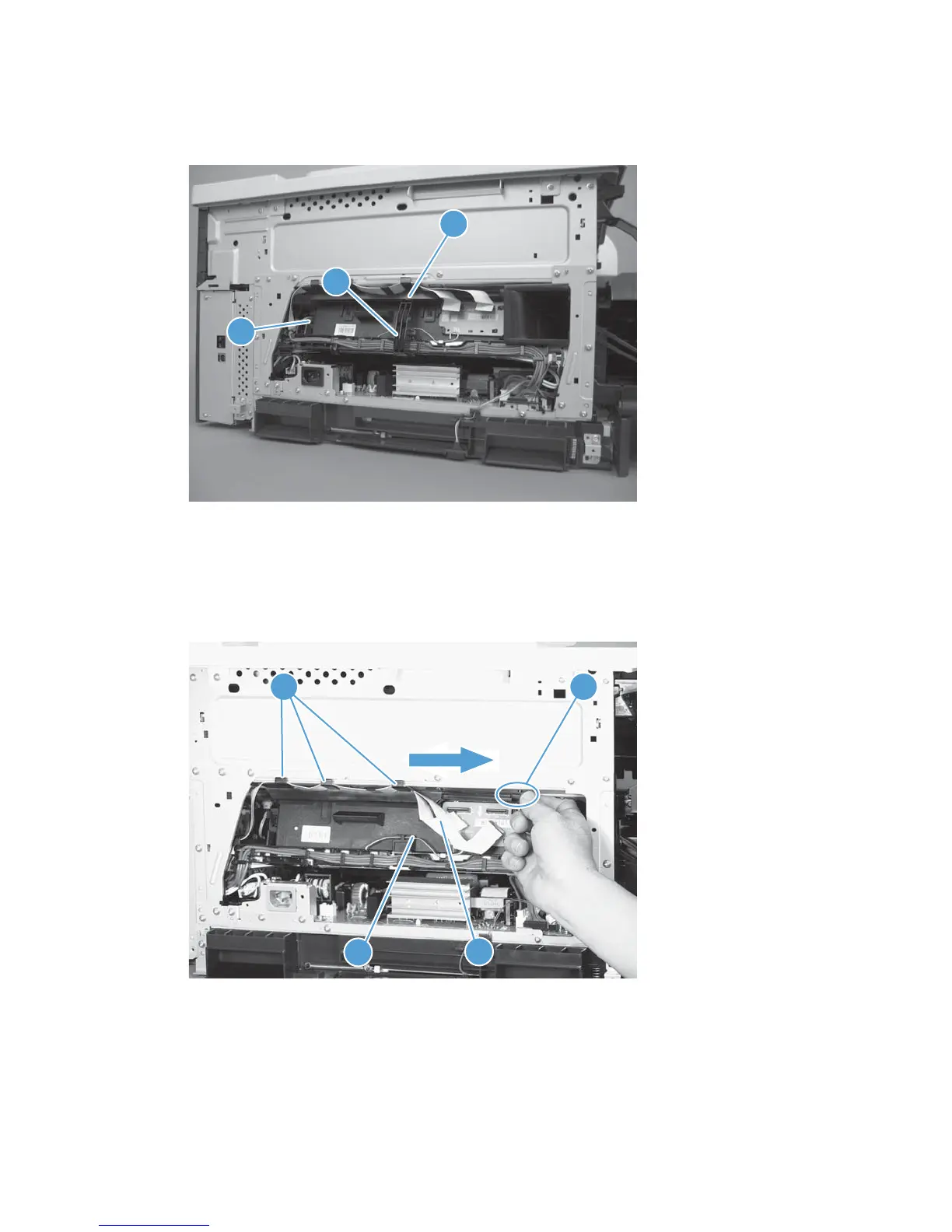

Figure 2-55 Remove the laser/scanner assembly (2 of 4)
1
2
3
4. Release one tab (callout 1), and then slide the cable guide (callout 2) in the direction that the arrow
indicates.
5. Remove the cable guide (callout 2) and the flat cables (callout 3) together, and then remove one spring
(callout 4).
Figure 2-56 Remove the laser/scanner assembly (3 of 4)
4
3
2
1
126 Chapter 2 Removal and replacement ENWW
