2. Make sure that the sensor flag is correctly installed, and that the flag moves properly after
reassembling the paper pickup assembly.

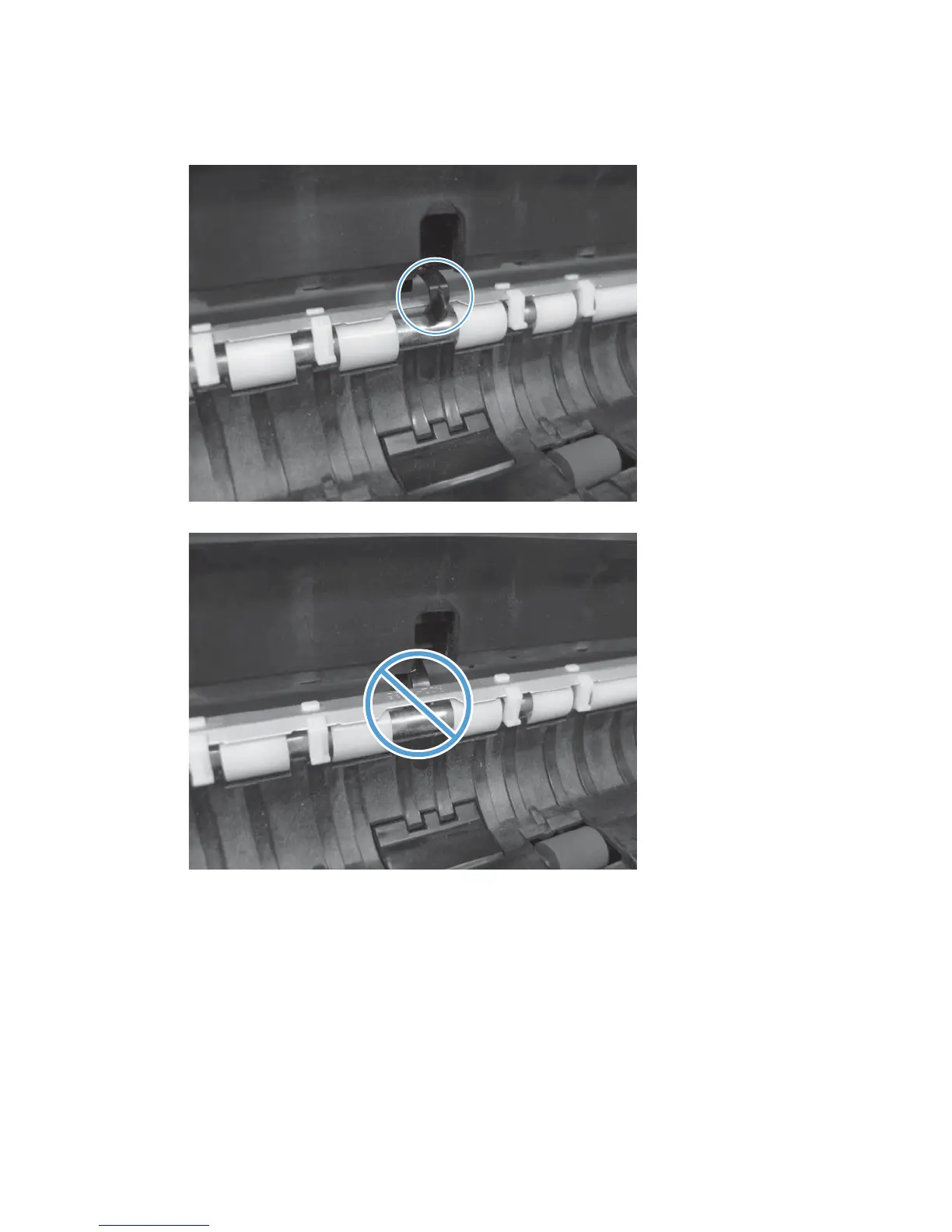

Figure 2-63 Paper pickup assembly sensor flag correctly installed
Figure 2-64 Paper pickup assembly sensor flag incorrectly installed
132 Chapter 2 Removal and replacement ENWW
