Reinstall the paper pickup assembly
Use the steps below to reinstall the paper pickup assembly. If you are installing a replacement assembly,
also see
Installing a replacement paper pickup assembly on page 133 after completing these steps.
1. When reassembling the paper pickup assembly (callout 1), the sensor flag (callout 2) is in the way. Be
sure to hold up the sensor flag when reassembling.

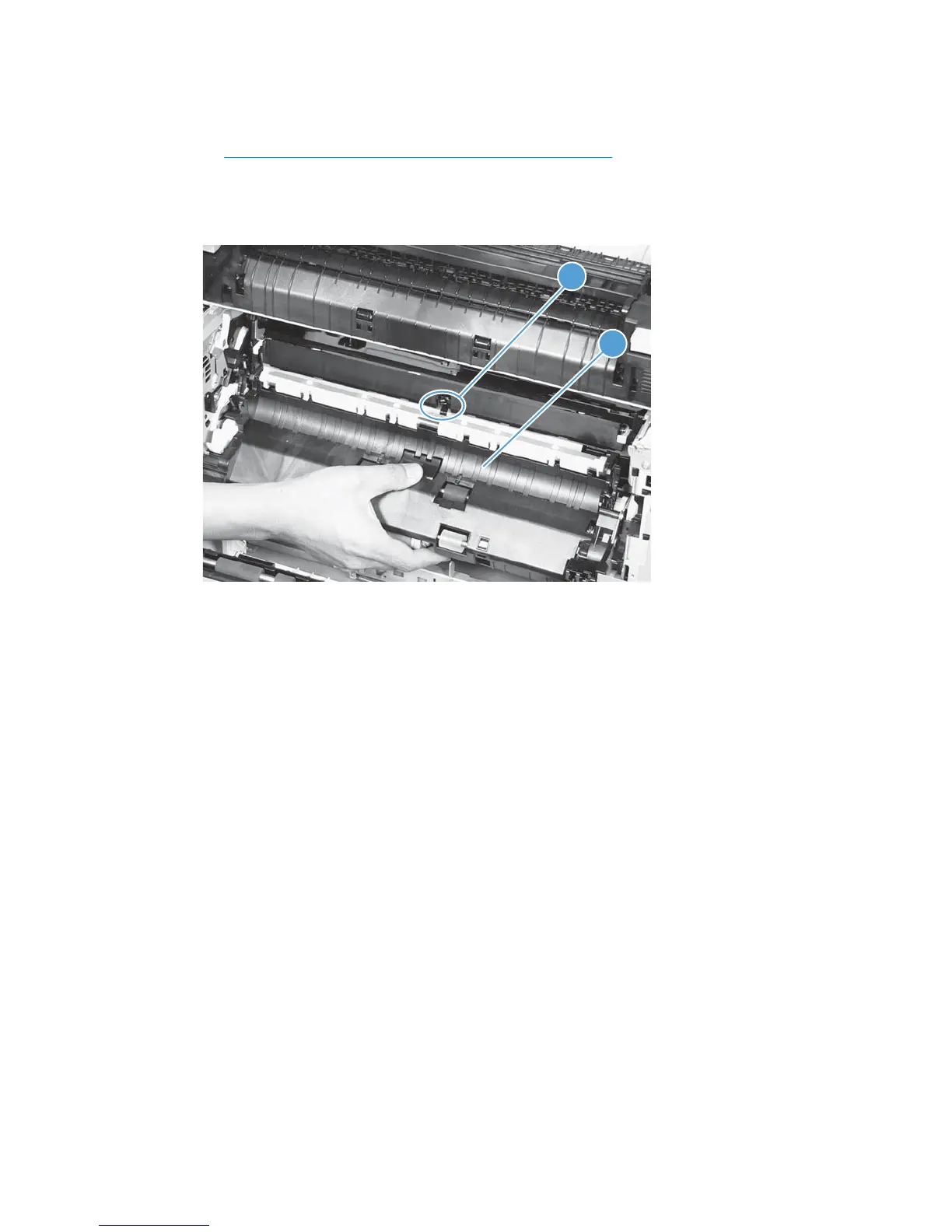

Figure 2-62 Reinstall the paper pickup assembly
2
1
