HP M750 series

Registration sensor assembly
Before proceeding, remove the following components:
●
Tray 2 cassette.
●
Cassette separation roller assembly. See
Separation roller assembly (Tray 2) on page 94.
●
Intermediate transfer belt (ITB). See
Intermediate transfer belt (ITB) on page 98.
●
Cassette pickup drive assembly. See
Paper pickup assembly on page 128.
Remove the registration sensor assembly
1. Push the tab (callout 1) down, and then pull the top of the cover to remove the cover (callout 2). You
might need a small flat-blade screwdriver to press down the tab.

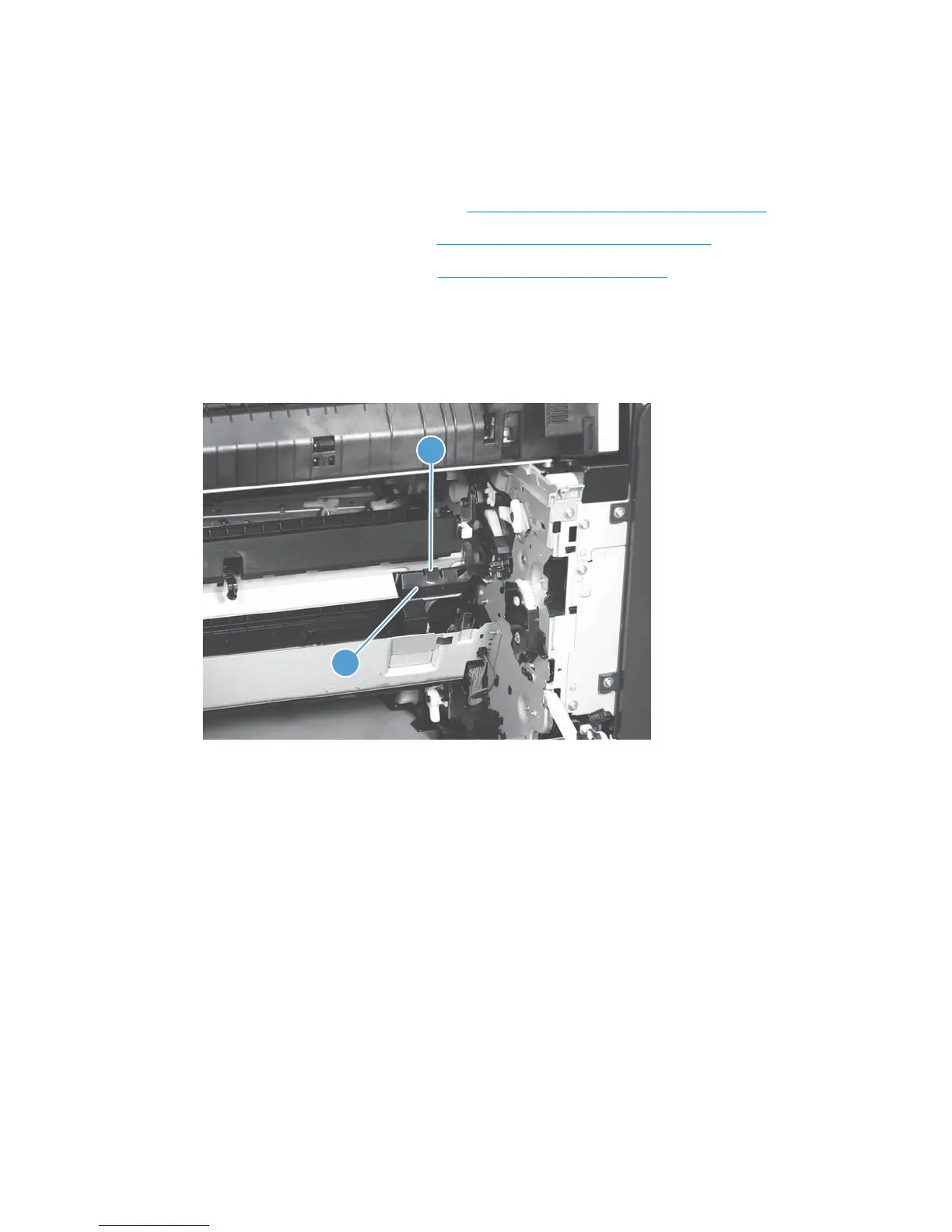

Figure 2-66 Remove the registration sensor assembly (1 of 4)
2
1
ENWW Removal and replacement procedures 135
