2. Disconnect one connector (callout 1), and then detach the bottom part of the spring (callout 2) at the
right end. If necessary, use a pick or needle-nose pliers to detach the spring.

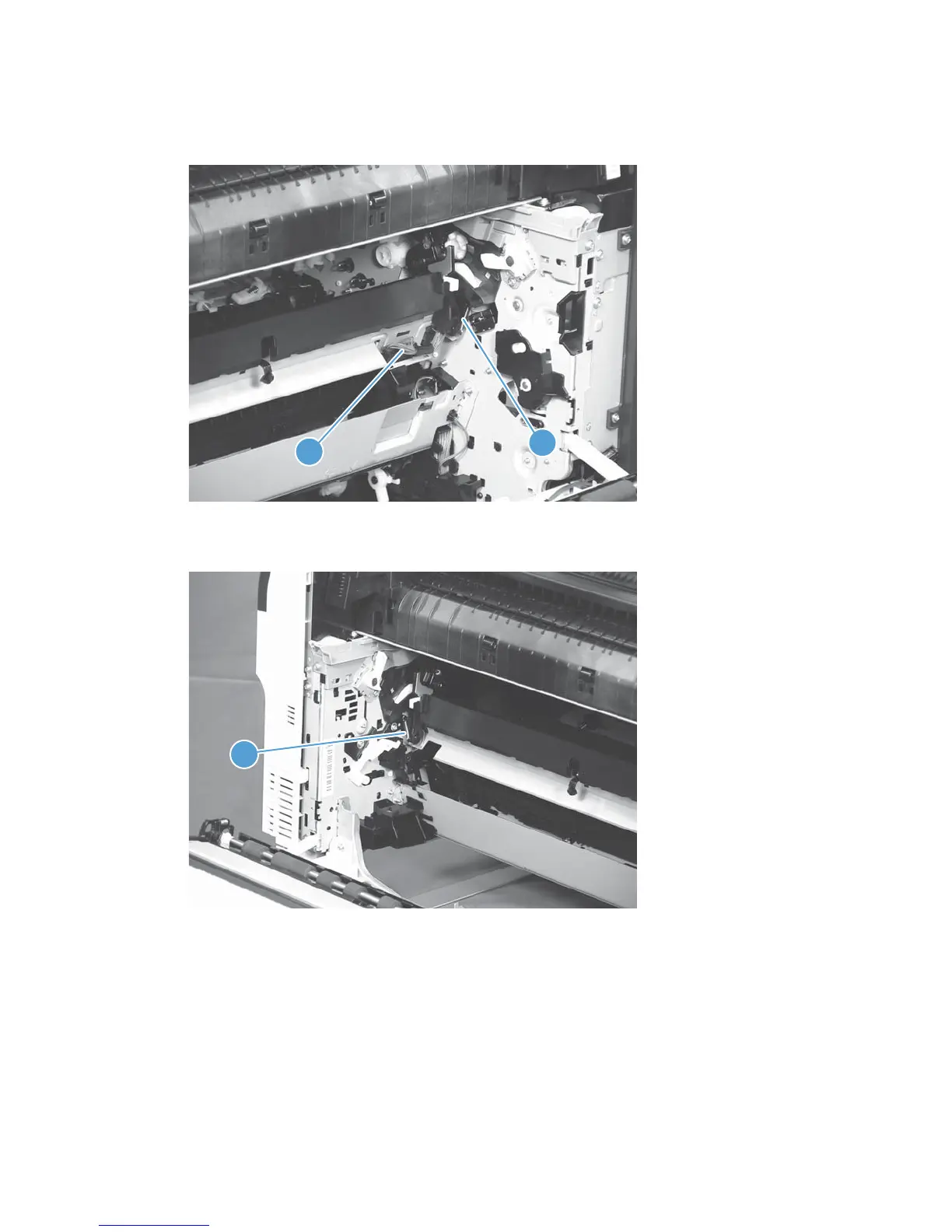

Figure 2-67 Remove the registration sensor assembly (2 of 4)
2
1
3. Detach the bottom of one spring (callout 1) at the left end.
Figure 2-68 Remove the registration sensor assembly (3 of 4)
1
