ITB rear guide assembly
Before proceeding, remove the following components:
●
ITB. See
Intermediate transfer belt (ITB) on page 98.
●
Right-front cover and control-panel assembly. See
Right-front cover and control-panel assembly
on page 108.
●
Left cover. See
Left cover on page 110.
●
Rear cover. See
Rear cover on page 111.
●
Right-rear cover. See
Right-rear cover on page 114.
●
Top cover. See
Top cover on page 115.
▲

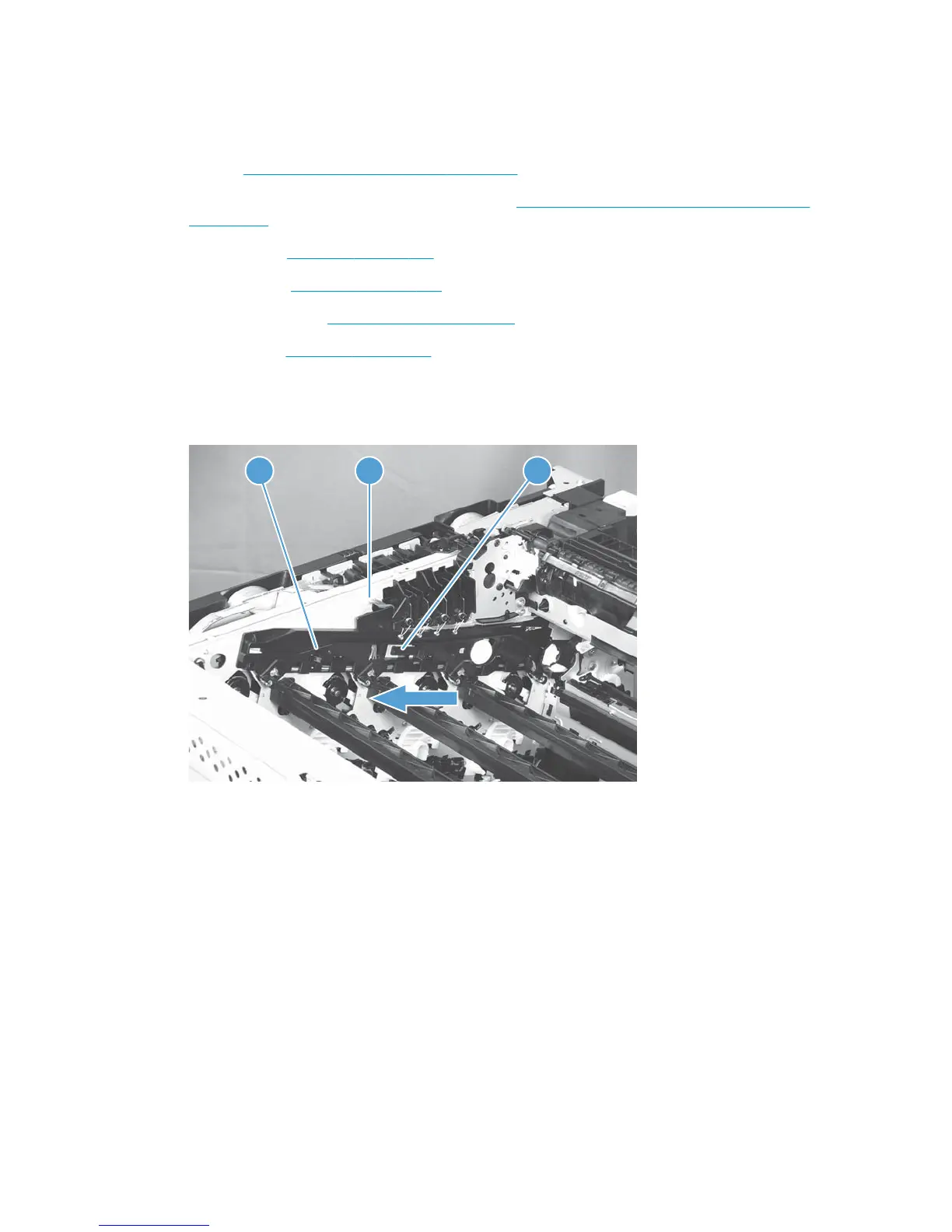

Disconnect one connector (callout 1), release one tab (callout 2), and then slide the ITB rear guide unit
(callout 3) in the direction that the arrow indicates to remove it.
Figure 2-77 Remove the ITB rear guide assembly
31 2
144 Chapter 2 Removal and replacement ENWW
