Residual toner full sensor
Before proceeding, remove the following components:
●
Toner-collection unit. See
Toner-collection unit on page 88.
●
Right-front cover and control-panel assembly. See
Right-front cover and control-panel assembly
on page 108.
●
Left cover. See
Left cover on page 110.
●
Rear cover. See
Rear cover on page 111.
●
Toner collection unit access door. See
Toner collection unit access door on page 112.
●
Right-rear cover. See
Right-rear cover on page 114.
●
Top cover. See
Top cover on page 115.
Remove the residual toner full sensor

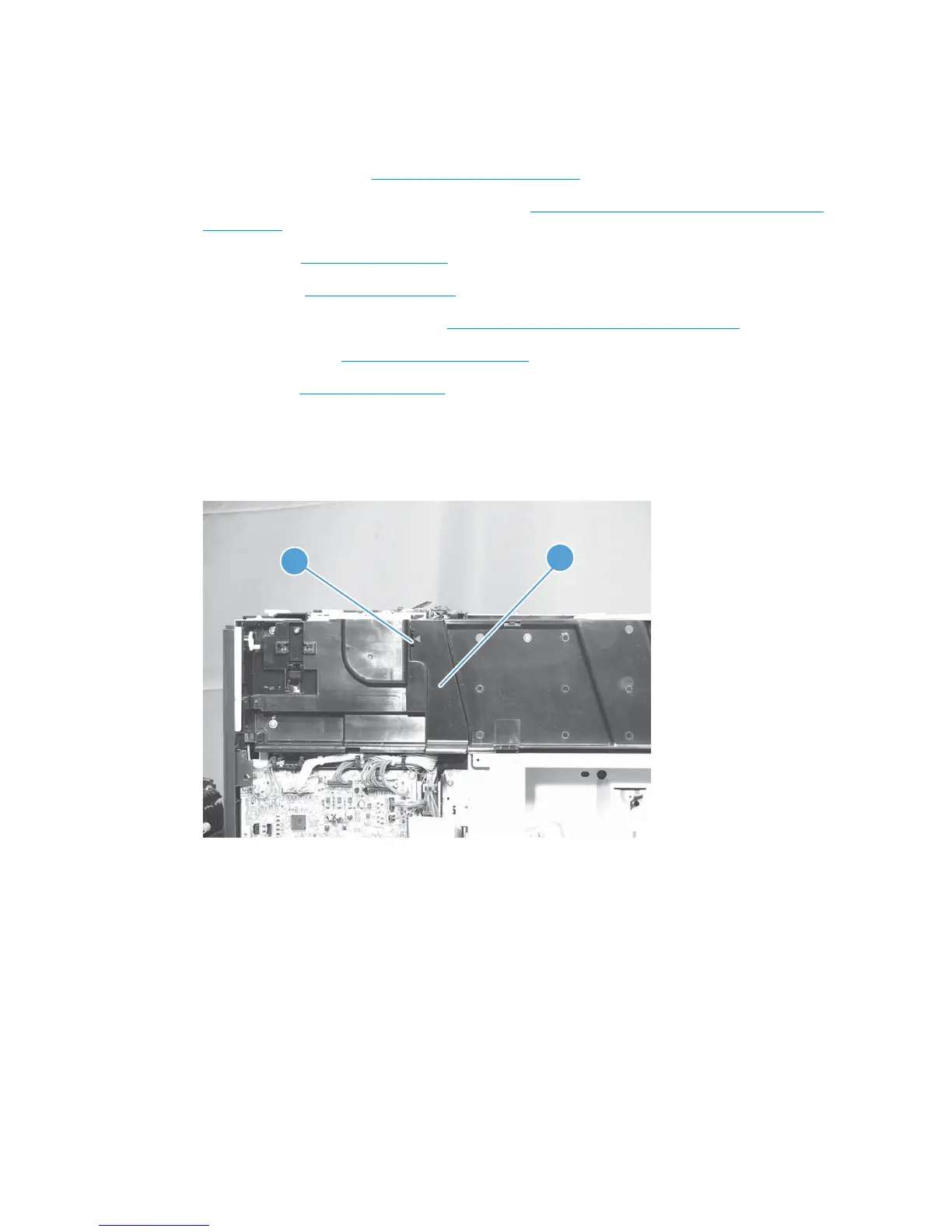

1. Release one tab (callout 1), and then remove the cover (callout 2).
Figure 2-78 Remove the residual toner full sensor (1 of 4)
1
2
ENWW Removal and replacement procedures 145
