3. Disconnect one connector (callout 1), remove three screws (callout 2), and then remove the residual
toner full sensor assembly (callout 3).
CAUTION: During the removal process, make sure that the white gear (callout 4) does not fall out of
the assembly. The white gear might stay on the product, and not come off with the assembly.

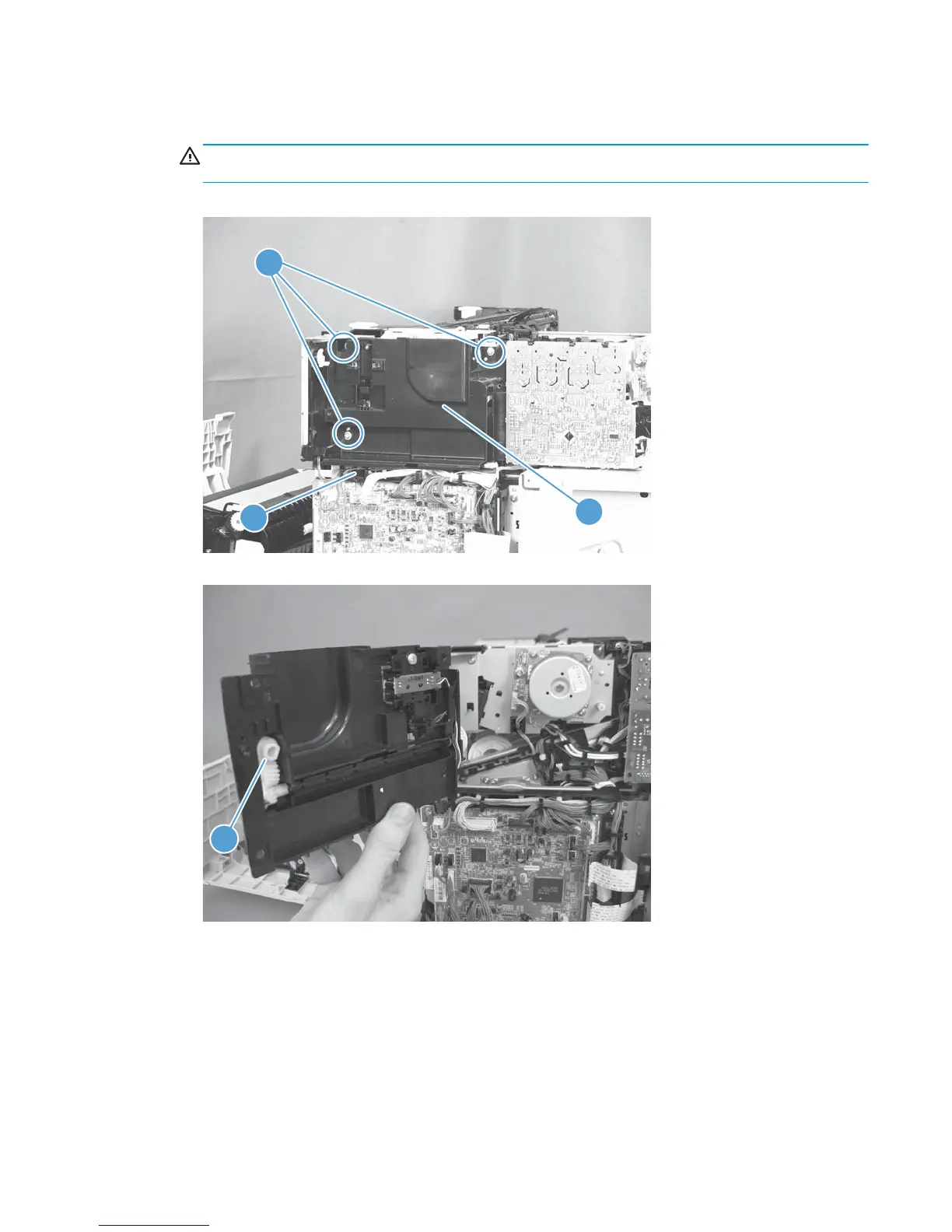

Figure 2-80 Remove the residual toner full sensor (3 of 4)
11
2
3
Figure 2-81 Remove the residual toner full sensor (4 of 4)
4
ENWW Removal and replacement procedures 147
