Reinstall the residual toner full sensor
1. If the white gear (callout 1) was removed with the residual toner full sensor assembly, carefully remove
it from the assembly.

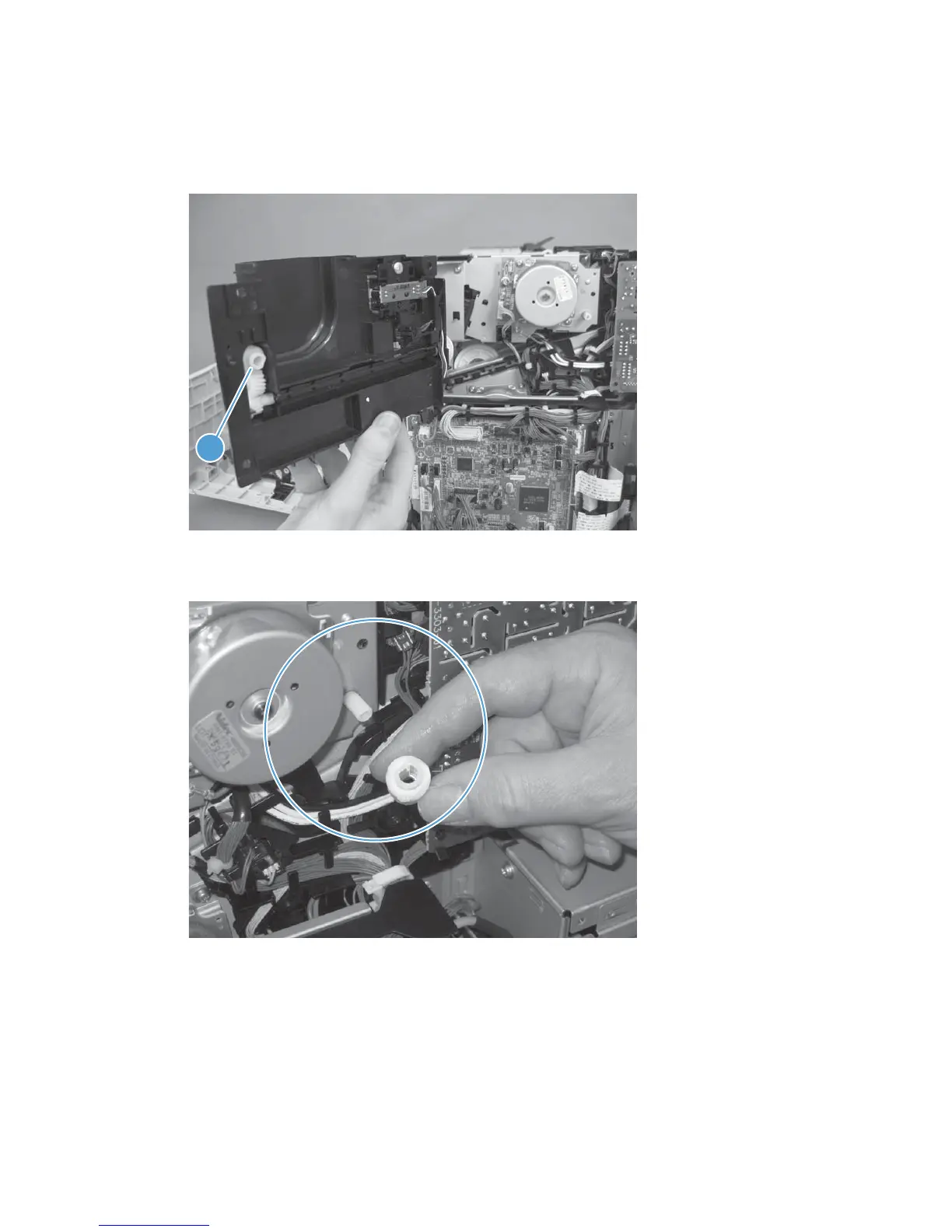

Figure 2-82 Reinstall the residual toner full sensor (1 of 3)
1
2. Alight the flat portion of the gear with the corresponding flat portion of the drive shaft.
Figure 2-83 Reinstall the residual toner full sensor (2 of 3)
148 Chapter 2 Removal and replacement ENWW
