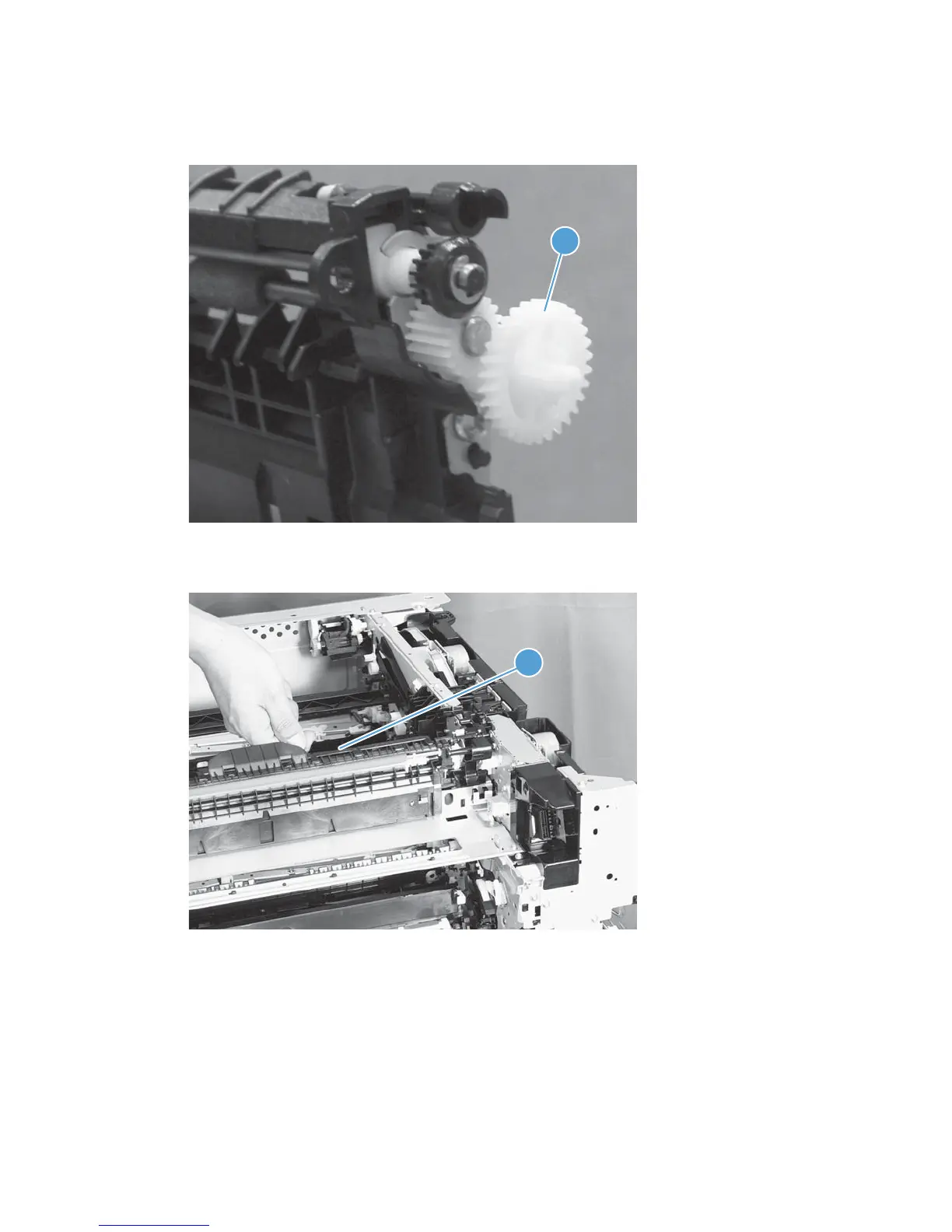

2. During reassembly, the white gear (callout 1) can become dislodged. Make sure that it is correctly
installed on the assembly.
Figure 2-131 Reinstall the paper delivery assembly (2 of 3)
1
3. After reinstalling the delivery assembly, verify that the sensor flag (callout 1) moves smoothly.
Figure 2-132 Reinstall the paper delivery assembly (3 of 3)
1
178 Chapter 2 Removal and replacement ENWW
