Duplex drive assembly (duplex models)
Before proceeding, remove the following components:
●
Fuser. See
Fuser on page 90.
●
Intermediate transfer belt (ITB). See
Intermediate transfer belt (ITB) on page 98.
●
Right-front cover and control-panel assembly. See
Right-front cover and control-panel assembly
on page 108.
●
Left cover. See
Left cover on page 110.
●
Rear cover. See
Rear cover on page 111.
●
Right-rear cover. See
Right-rear cover on page 114.
●
Top cover. See
Top cover on page 115.
●
Delivery assembly. See
Paper delivery assembly on page 176.
Remove the duplex-drive assembly
1. Disconnect two connectors (callout 1).

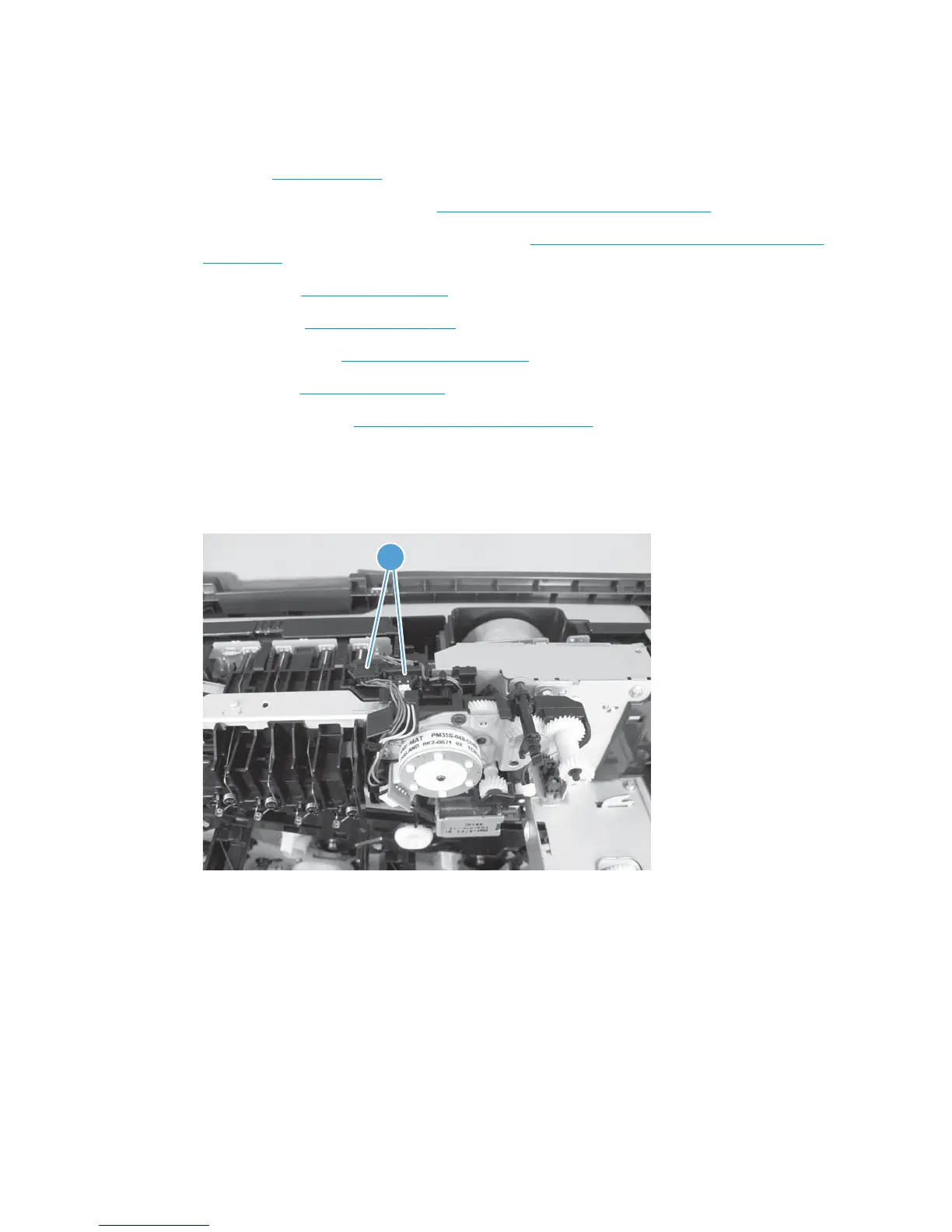

Figure 2-133 Remove the duplex-drive assembly (1 of 3)
1
ENWW Removal and replacement procedures 179
