Developing-disengagement motor (M6)
Before proceeding, remove the following components:
●
Rear cover. See
Rear cover on page 111.
●
Right-rear cover. See
Right-rear cover on page 114.
●
Driver PCA. See
Driver PCA on page 207.
Remove the developing-disengagement motor
Disconnect one connector (callout 1), remove two screws (callout 2), and then remove the motor (callout 3).

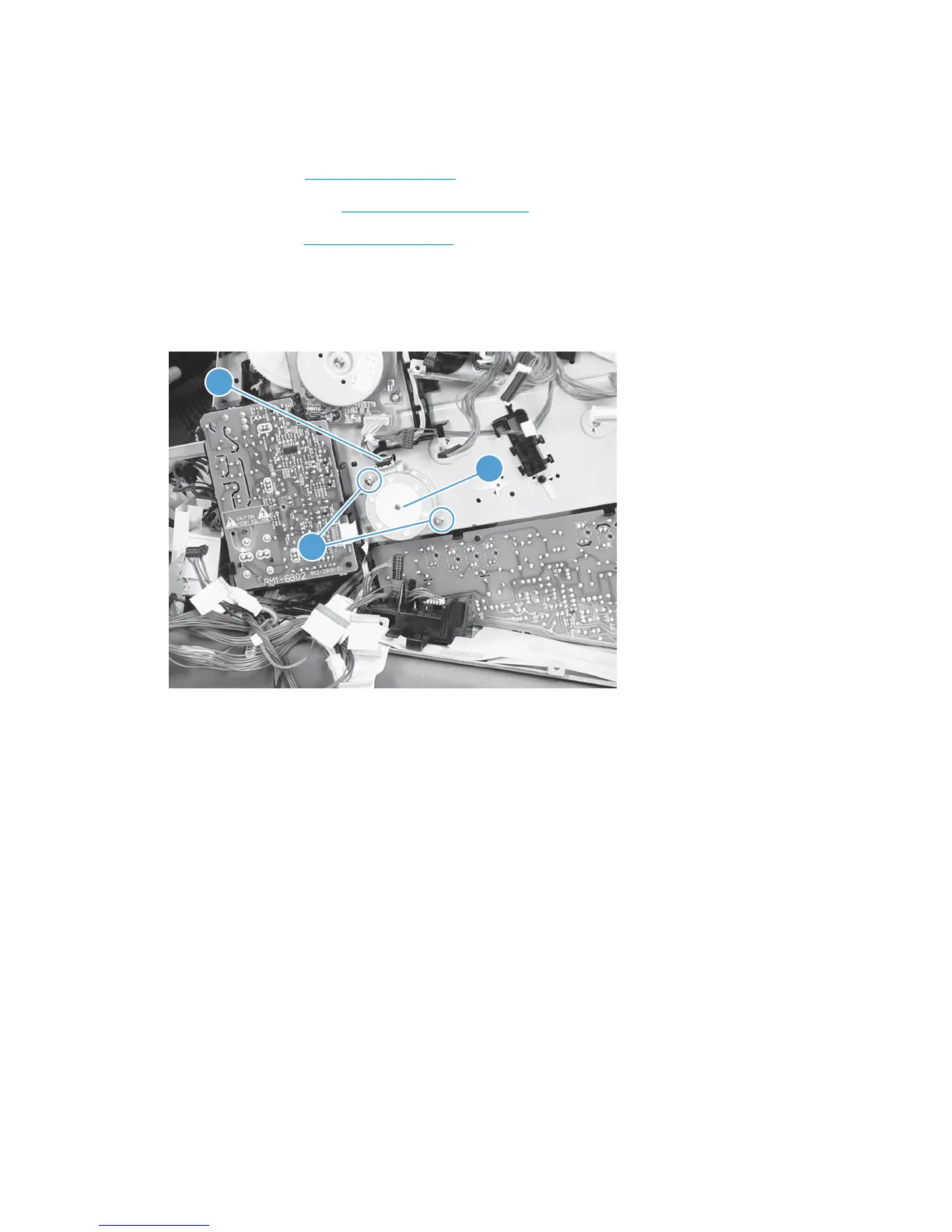

Figure 2-144 Remove the developing-disengagement motor
1
3
2
