Power-supply fan (FM1)
Before proceeding, remove the following components:
●
Right-front cover and control-panel assembly. See
Right-front cover and control-panel assembly
on page 108.
●
Left cover. See
Left cover on page 110.
●
Front-door assembly (steps 1 and 2 only). See
Front-door assembly on page 117.

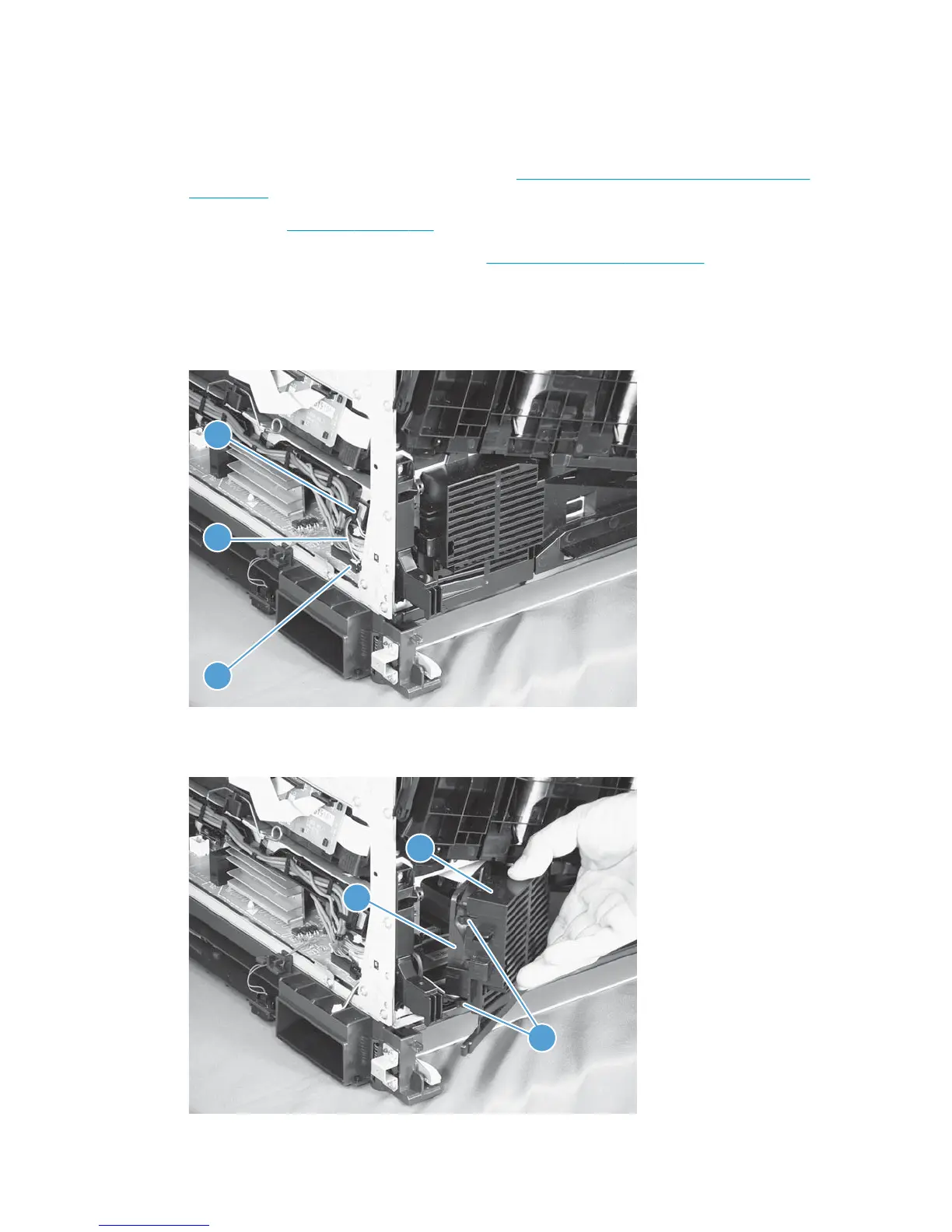

Remove the power-supply fan
1. Disconnect one connector (callout 1), and then release the cables (callout 3) from the guide (callout 2).
Figure 2-145 Remove the power-supply fan (1 of 3)
1
3
2
2. Release two tabs (callout 1), and then remove the fan (callout 2) and the fan holder (callout 3) together.
Figure 2-146 Remove the power-supply fan (2 of 3)
3
1
2
190 Chapter 2 Removal and replacement ENWW
