3. Pull on the sides of the fan holder to remove the fan from the holder.

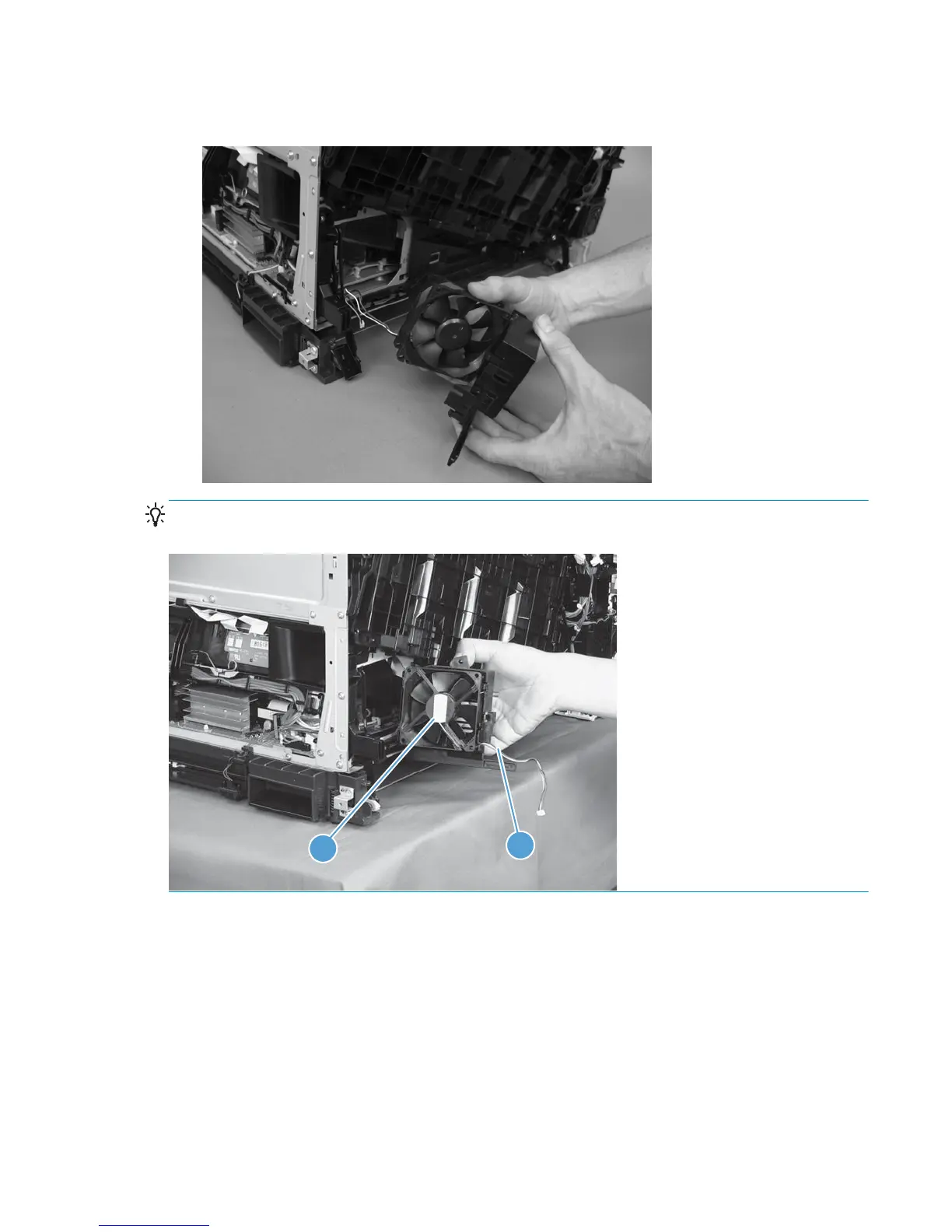

Figure 2-147 Remove the power-supply fan (3 of 3)
Reinstallation tip When reinstalling the fan, verify that the fan cables (callout 1) are positioned as shown
and that the label (callout 2) on the fan is facing toward the inside of the product.
1
2
ENWW Removal and replacement procedures 191
