Fuser fan (FM2)
Before proceeding, remove the following components:
●
Right-front cover and control-panel assembly. See
Right-front cover and control-panel assembly
on page 108.
Remove the fuser fan
1. Disconnect one connector (callout 1), release one tab (callout 2), and then slide the guide (callout 3)
down to remove it.

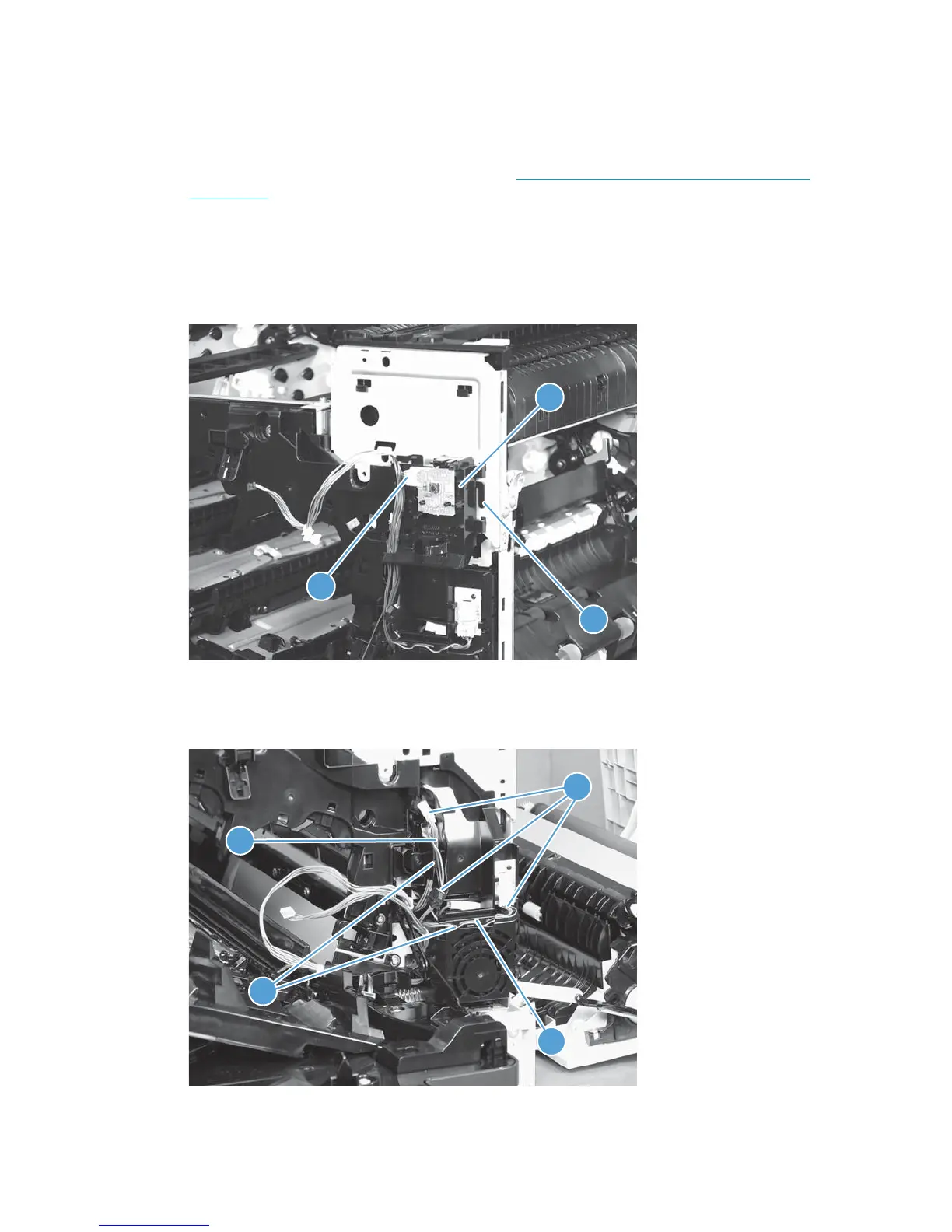

Figure 2-148 Remove the fuser fan (1 of 4)
3
2
1
2. Disconnect three connectors (callout 1), and then release the cables (callout 3) from the cable guides
(callout 2).
Figure 2-149 Remove the fuser fan (2 of 4)
2
3
3
1
192 Chapter 2 Removal and replacement ENWW
