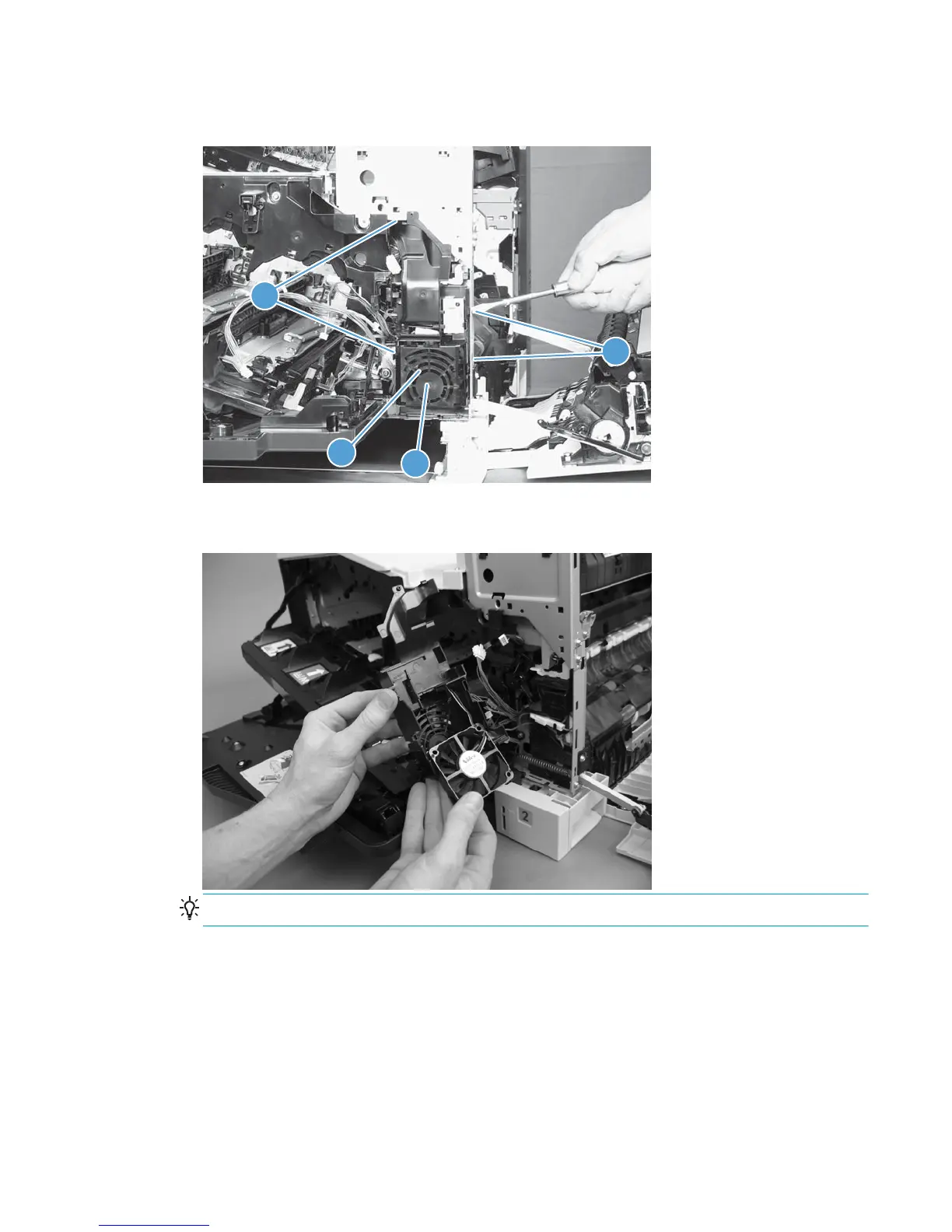

3. Release four tabs (callout 1), and then remove the fan (callout 2) and the fan holder (callout 3) together.
Figure 2-150 Remove the fuser fan (3 of 4)
1
2
3
1
4. Turn the fan holder over, and then pull the fan out of the holder.
Figure 2-151 Remove the fuser fan (4 of 4)
Reinstallation tip Note the wiring path and label orientation for reinstallation.
ENWW Removal and replacement procedures 193
