Formatter fan (FM3) and ICB PCA
Before proceeding, remove the following components:
●
Left cover. See
Left cover on page 110.
●
Rear cover. See
Rear cover on page 111.
●
Formatter PCA. See
Formatter PCA on page 100.
●
Formatter case. See
Formatter case on page 123.
Remove the formatter fan and ICB PCA
1. Disconnect three connectors (callout 1) and one FFC (callout 2).

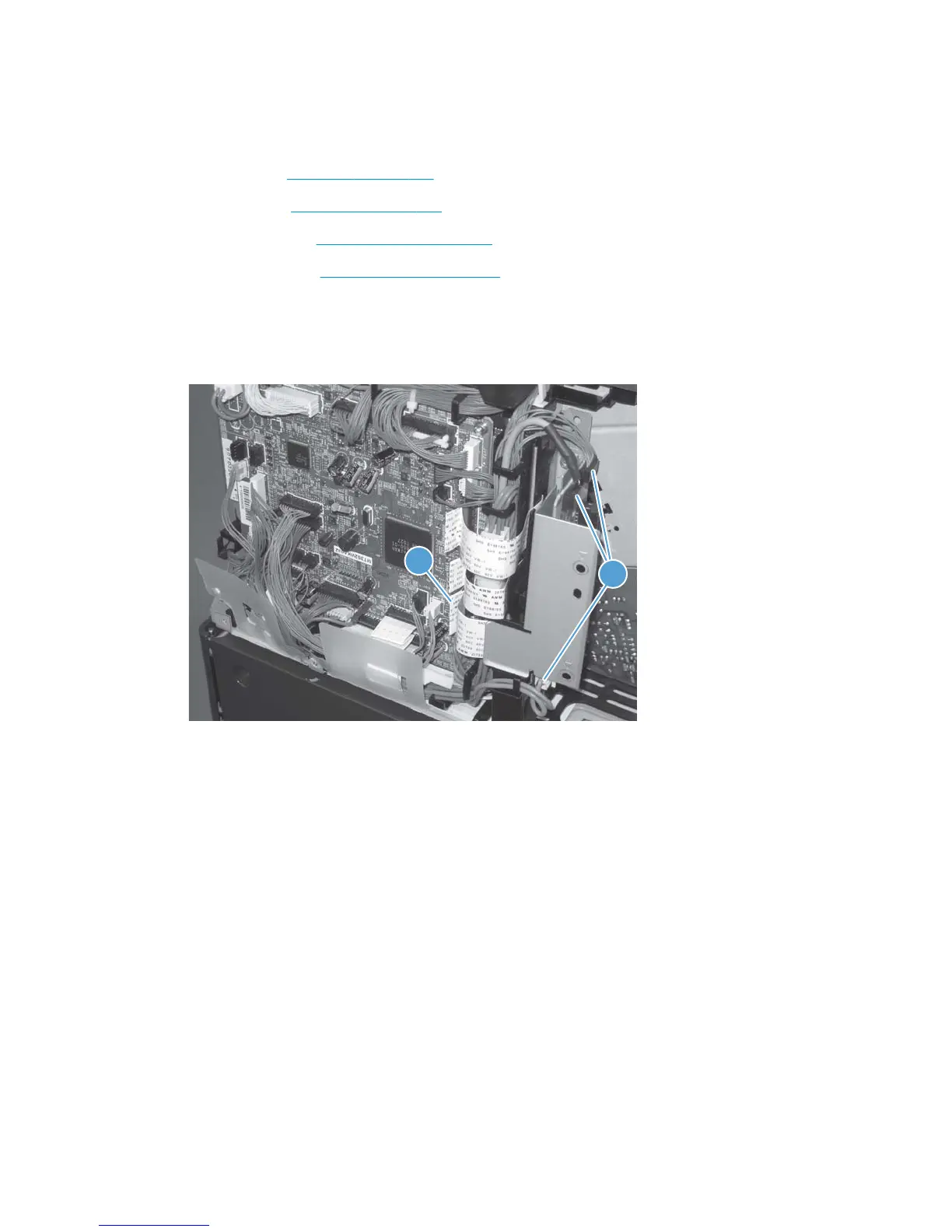

Figure 2-152 Remove the formatter fan (1 of 5)
2
1
194 Chapter 2 Removal and replacement ENWW
