1 x 500 right door

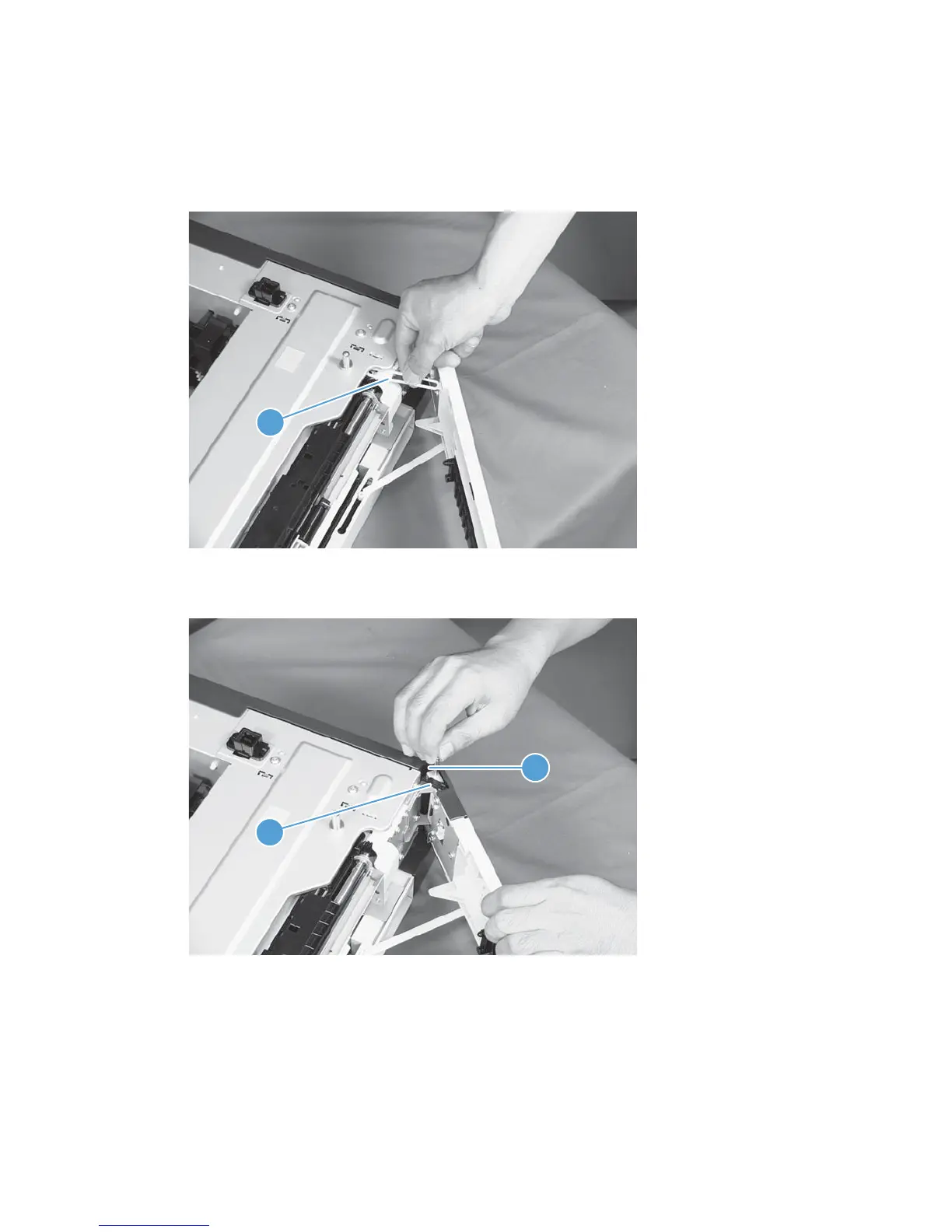

1. Lift the product off the feeder, and then open the tray right door.
2. Release the link arm (callout 1).
Figure 2-178 Remove the 1 x 500 right door (1 of 3)
1
3. Release the stopper (callout 1), and then release the shaft (callout 2).
Figure 2-179 Remove the 1 x 500 right door (2 of 3)
1
2
216 Chapter 2 Removal and replacement ENWW
