1 x 500 lifter-drive assembly
1. Remove the cassette from the feeder, and then remove the rear cover (see 1 x 500 rear cover
on page 211).
2. Disconnect two connectors (callout 1).

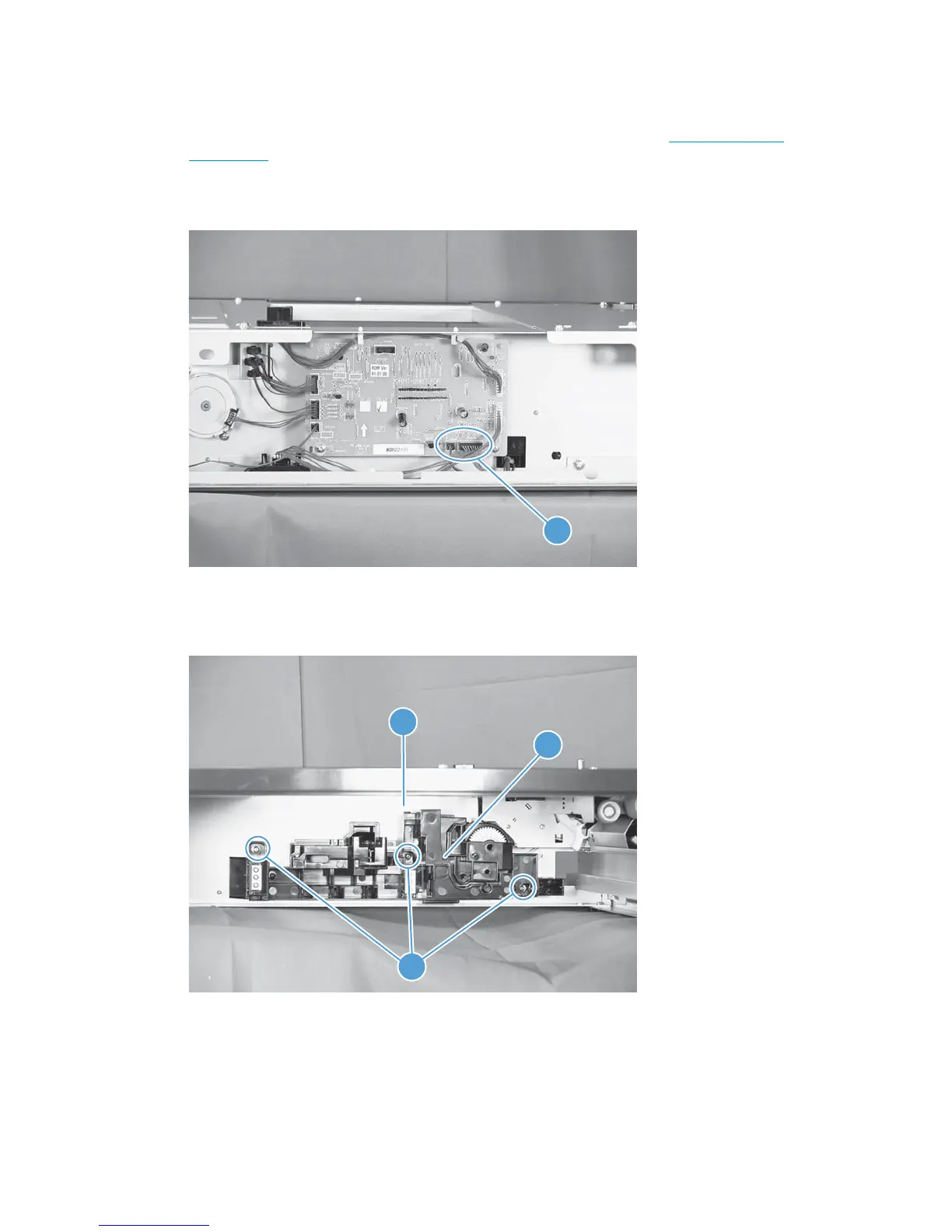

Figure 2-186 Remove the 1 x 500 lifter-drive assembly (1 of 2)
1
3. From the front, inside the tray cavity, remove three screws (callout 1), release one tab (callout 2), and
then remove the 1 x 500 lifter-drive assembly (callout 3).
Figure 2-187 Remove the 1 x 500 lifter-drive assembly (2 of 2)
2
3
1
