1 x 500 pickup motor
1. Remove the cassette from the feeder, and then remove the rear cover (see 1 x 500 rear cover
on page 211).
2. Disconnect one connector (callout 1), remove two screws (callout 2), and then remove the 1 x 500
pickup motor (callout 3).

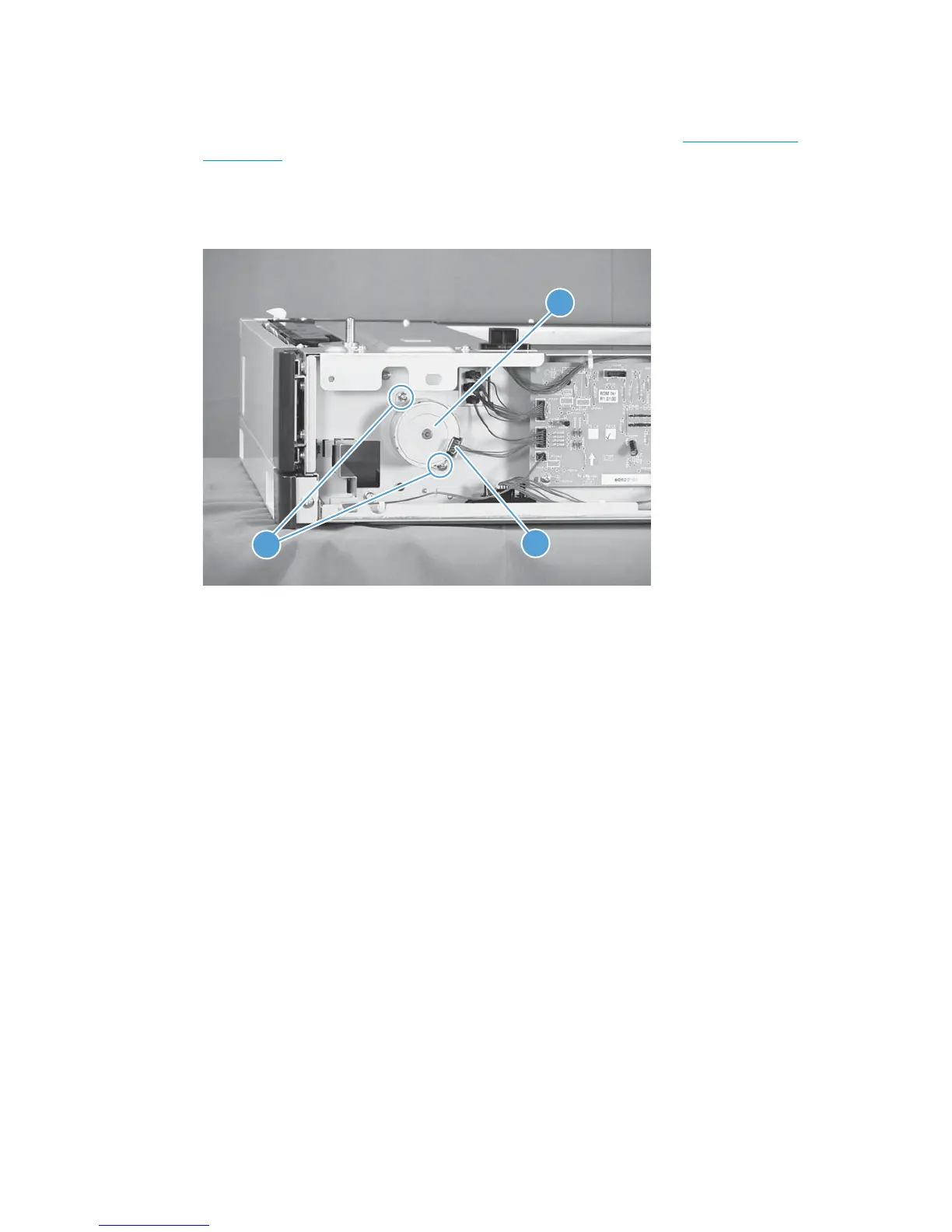

Figure 2-188 Remove the 1 x 500 pickup motor
