1 x 500 driver PCA
1. Remove the cassette from the feeder, and then remove the rear cover (see 1 x 500 rear cover
on page 211).
2. Disconnect seven connectors (callout 1), remove two screws (callout 2), release two tabs (callout 3),
and then remove the 1 x 500 driver PCA.
NOTE: One connector (callout 4) on the 1 x 500 driver PCA remains empty.

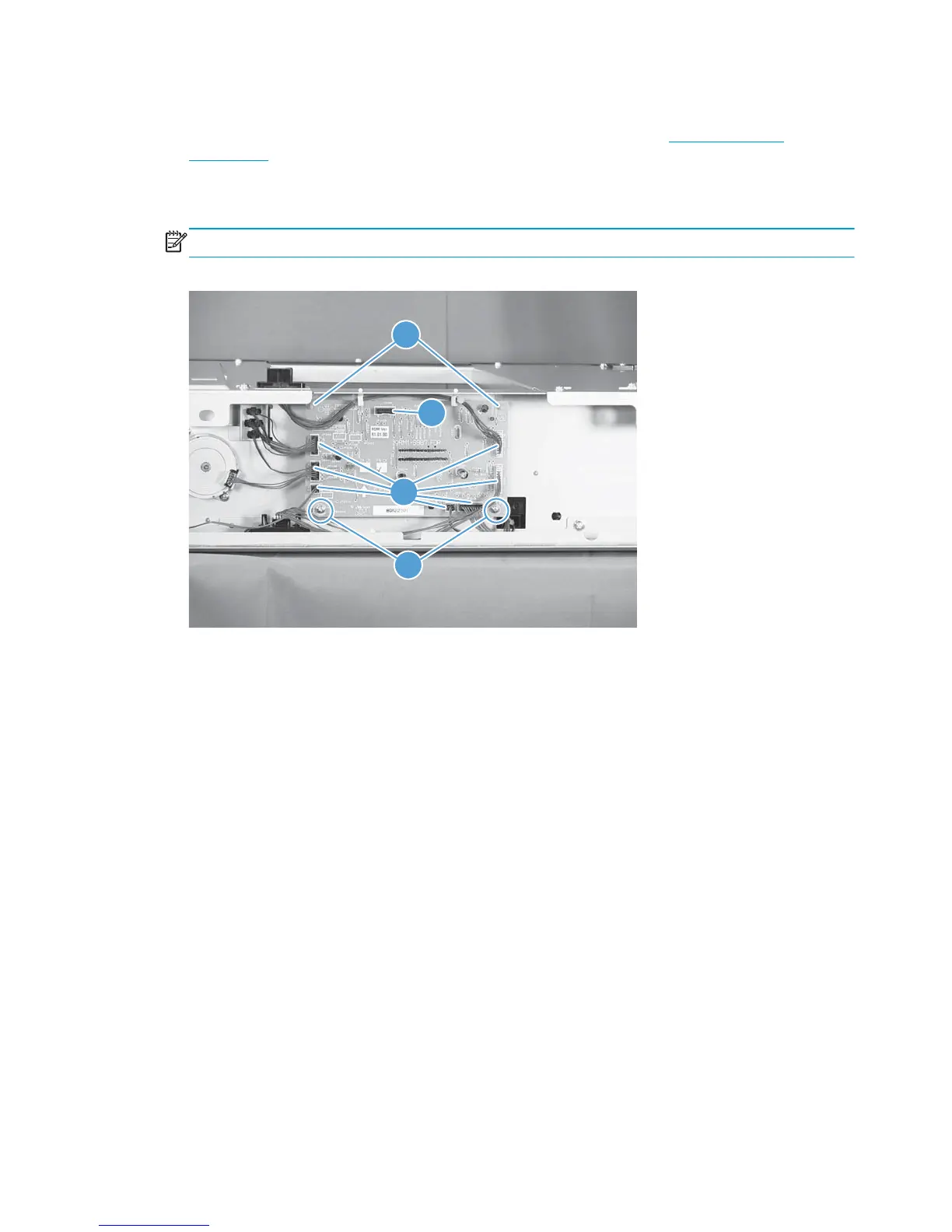

Figure 2-189 Remove the 1 x 500 driver PCA
3
2
1
4
224 Chapter 2 Removal and replacement ENWW
