3 x 500 left cover
1. Release one tab (callout 1), and then remove the locking lever (callout 2).

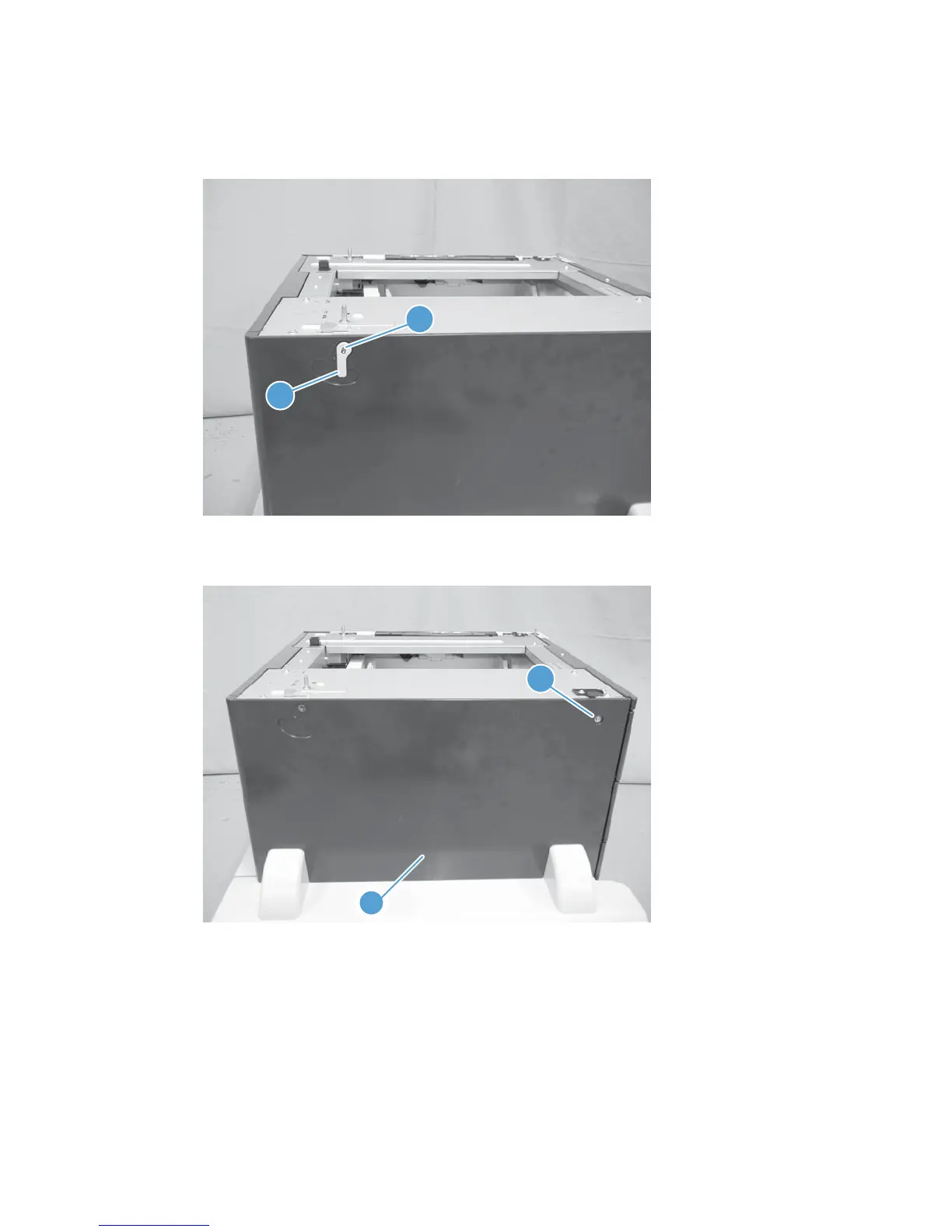

Figure 2-197 Remove the 3 x 500 left cover (1 of 2)
1
2
2. Remove one screw (callout 1), and then remove the left cover (callout 2).
Figure 2-198 Remove the 3 x 500 left cover (2 of 2)
1
2
ENWW Removal and replacement procedures 231
